Home › Honda › 2005 › Pilot LX › Repair and Diagnosis › Accessories & Equipment › Cruise Control Systems › Component Location Index

Component Location Index

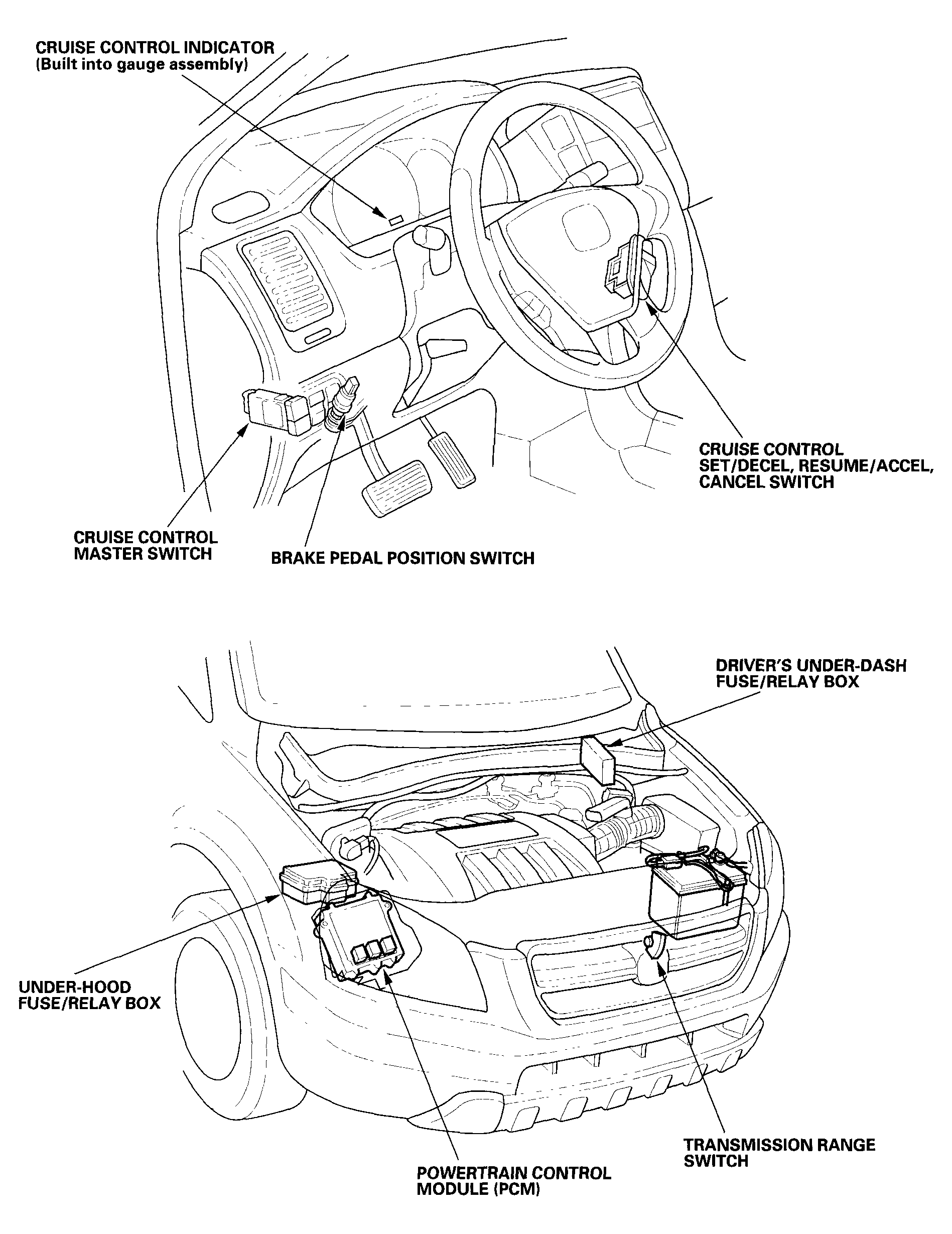

Fig 1: Identifying Cruise Control System Components Location
G04545484Courtesy of AMERICAN HONDA MOTOR CO., INC.
