Without Navigation
- Remove the audio unit (see WITHOUT NAVIGATION SYSTEM
).

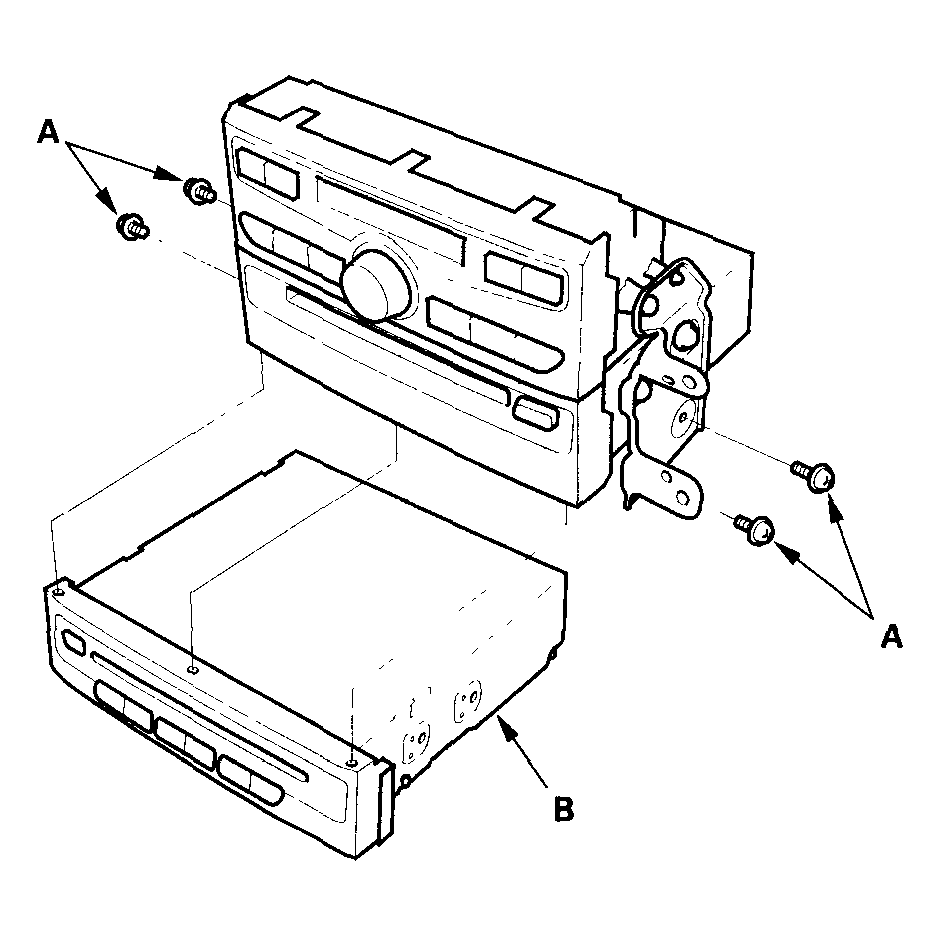

- Remove the screws (A), and separate the six CD changer (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the six CD changer in the reverse order of removal, and note these items:
- Make sure the audio unit and climate control unit connectors are plugged in properly, and the antenna lead is connected properly.
- Reset the power window control unit (see
RESETTING THE POWER WINDOW CONTROL UNIT
).
- Enter the anti-theft codes for the radio and navigation system, then enter the customer's radio station presets and set the clock.
