Washer Motor Test/Replacement

Remove the right inner fender (see FRONT INNER FENDER REPLACEMENT ).
Disconnect the 2P connectors (A) from the washer motors (B).

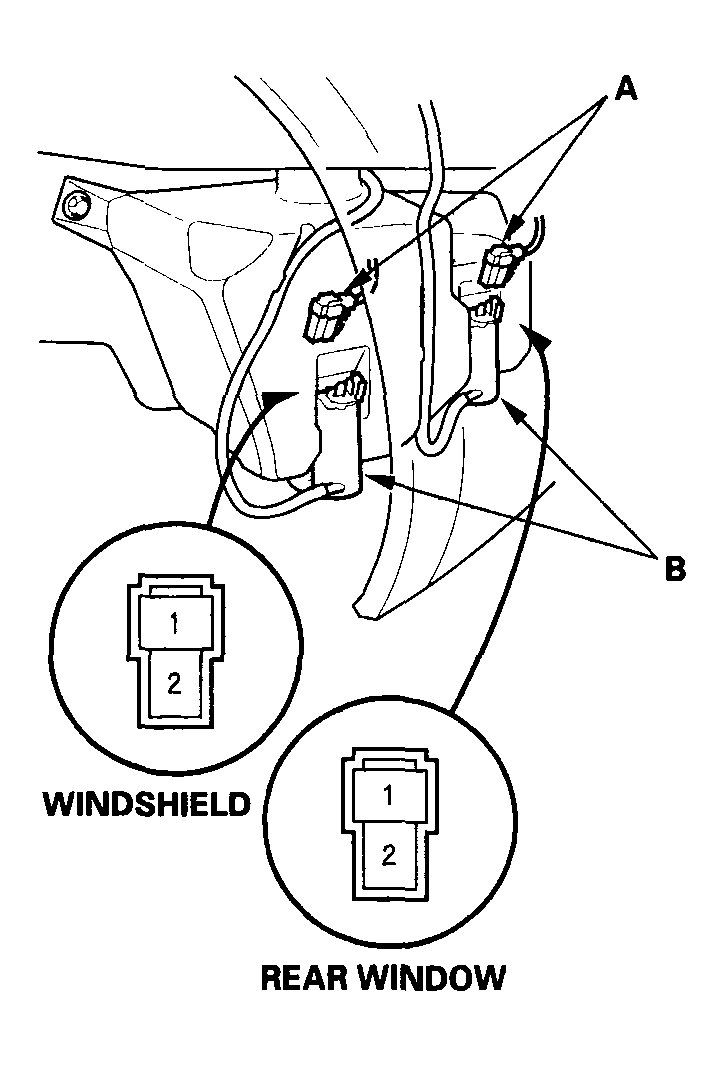

Fig 1: Disconnecting 2P Connectors (A) From Washer Motors (B)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test the washer motor by connecting battery power to the No. 1 terminal and ground to the No. 2 terminal.
If the motor does not run or fails to run smoothly, replace it.
