Repair and Diagnosis
›
Body & Frame
›
Frames, Subframes & Crossmembers
›
Frame Repair Chart
›
Side View
Side View

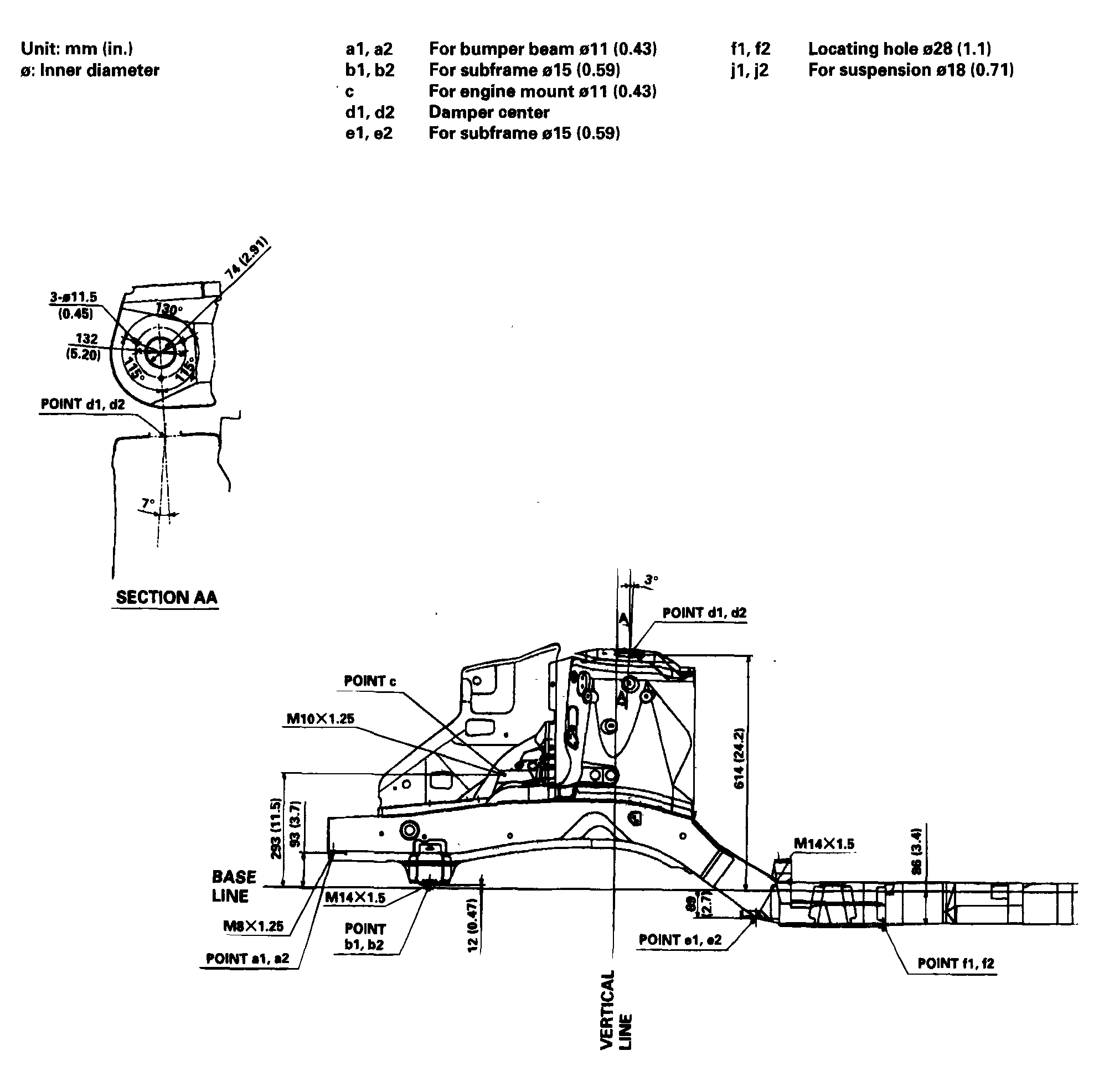

Fig 1: Frame Repair Chart - Side View (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

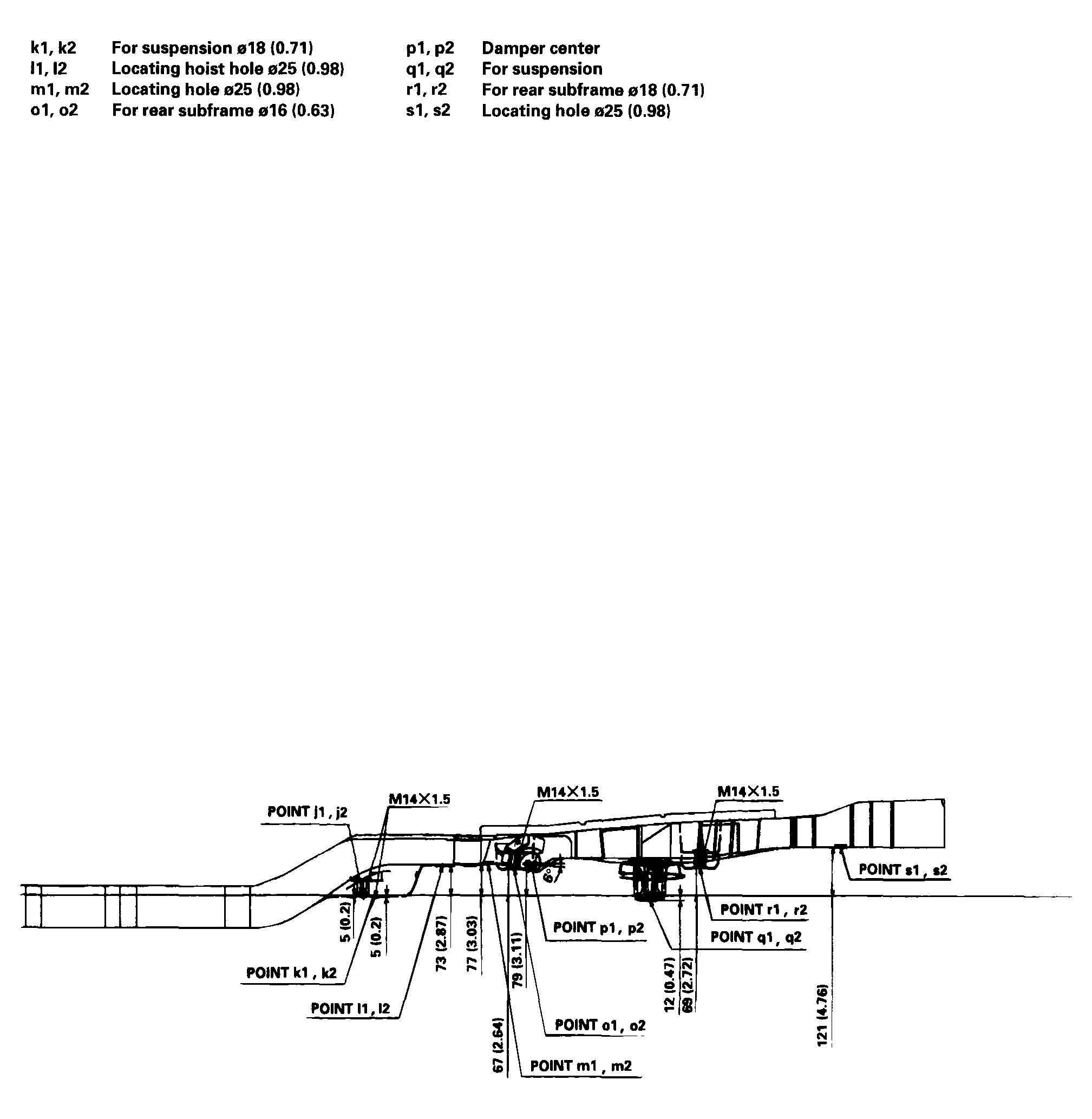

Fig 2: Frame Repair Chart - Side View (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
