Subframe Torque
After removing the subframe mounting bolts, be sure to replace them with new ones.

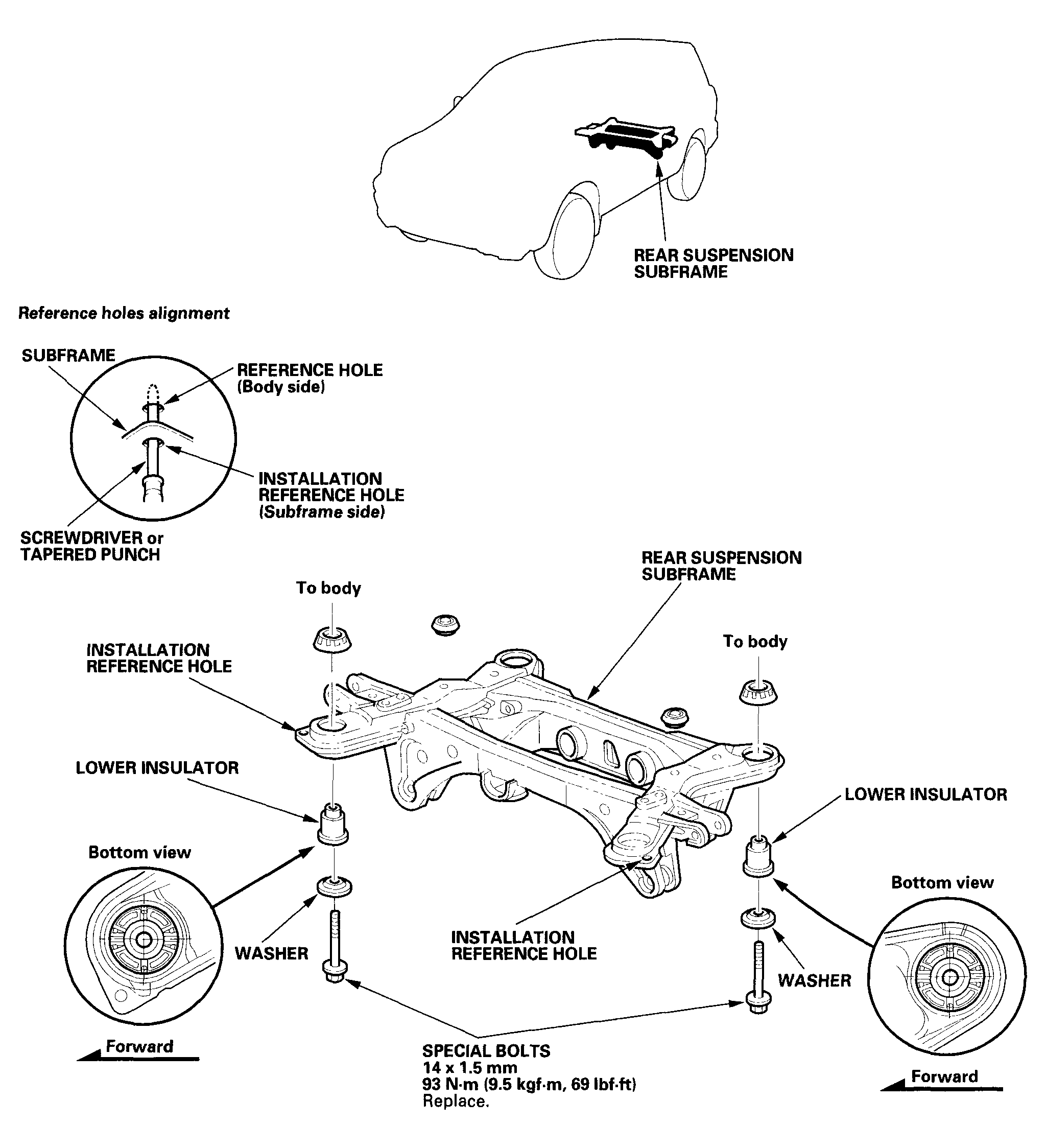

Fig 1: Exploded View Of Rear Subframe With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
