2005
›
Pilot LX
›
Repair and Diagnosis
›
Body & Frame
›
Seats
›
Power Seats
›
Circuit Diagram
Circuit Diagram

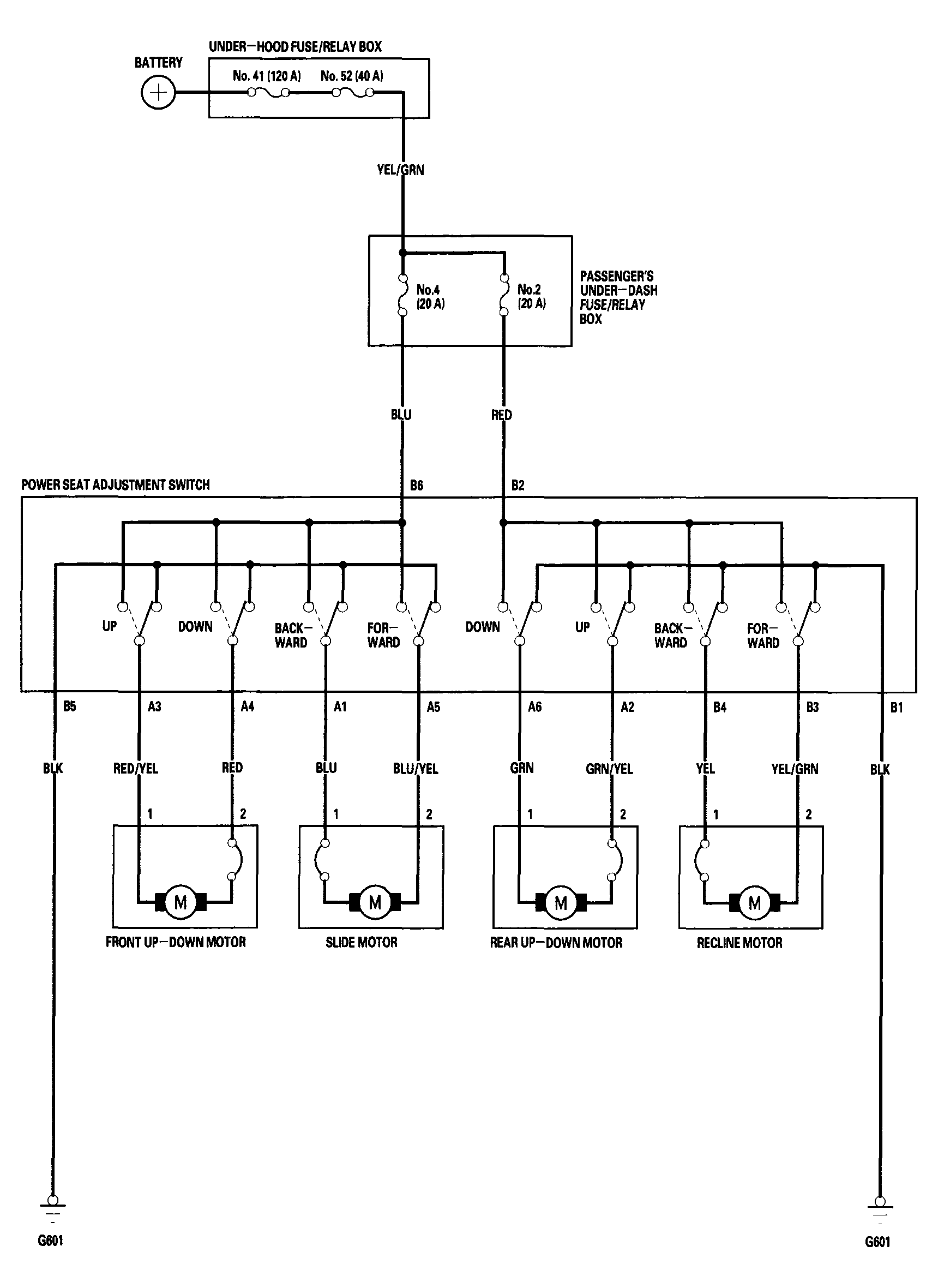

Fig 1: Power Seats Circuit Diagram
