VSA (Vehicle Stability Assist System Components)
›
Circuit Diagram
Circuit Diagram

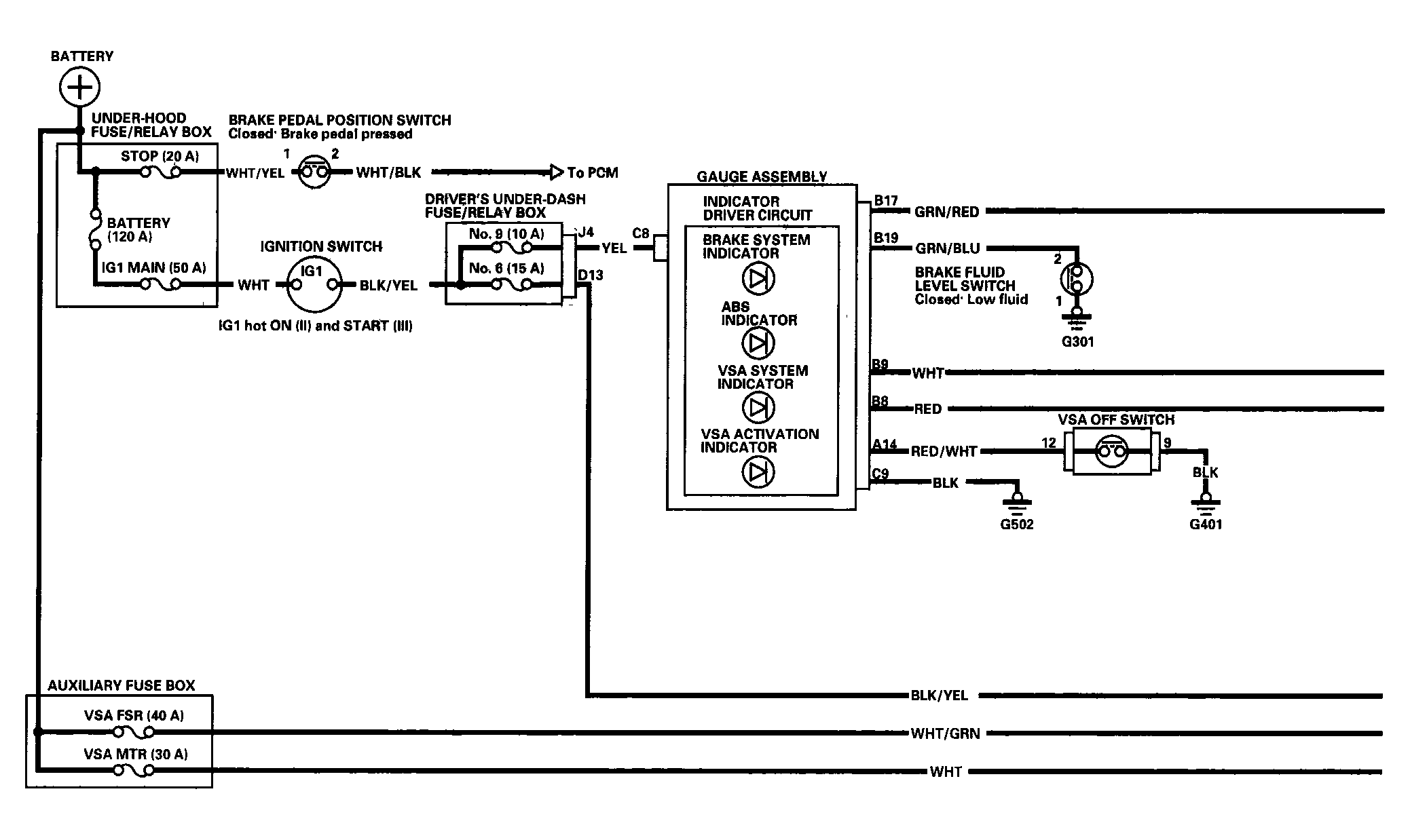

Fig 1: Circuit Diagram - VSA System Components (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

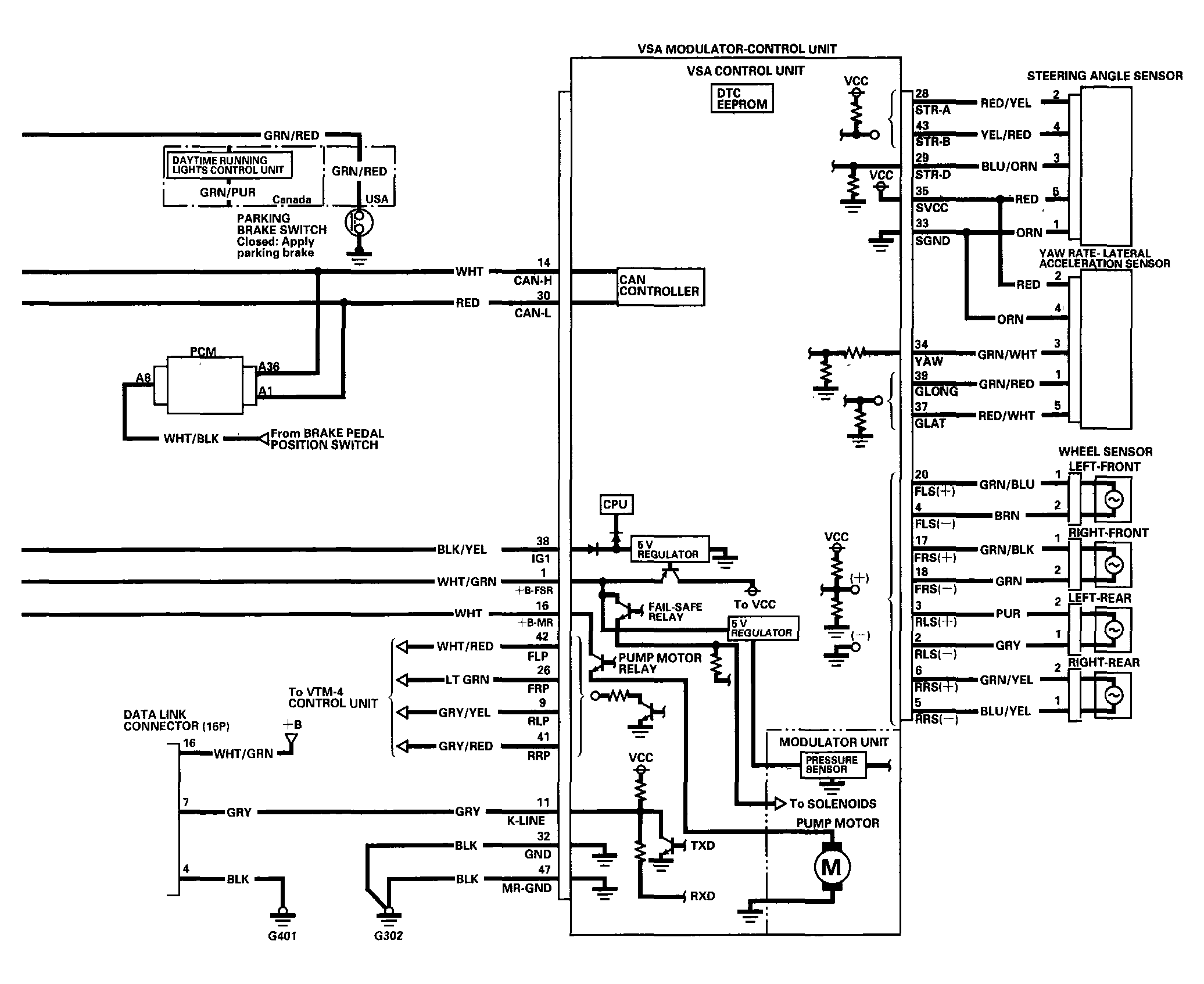

Fig 2: Circuit Diagram - VSA System Components (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

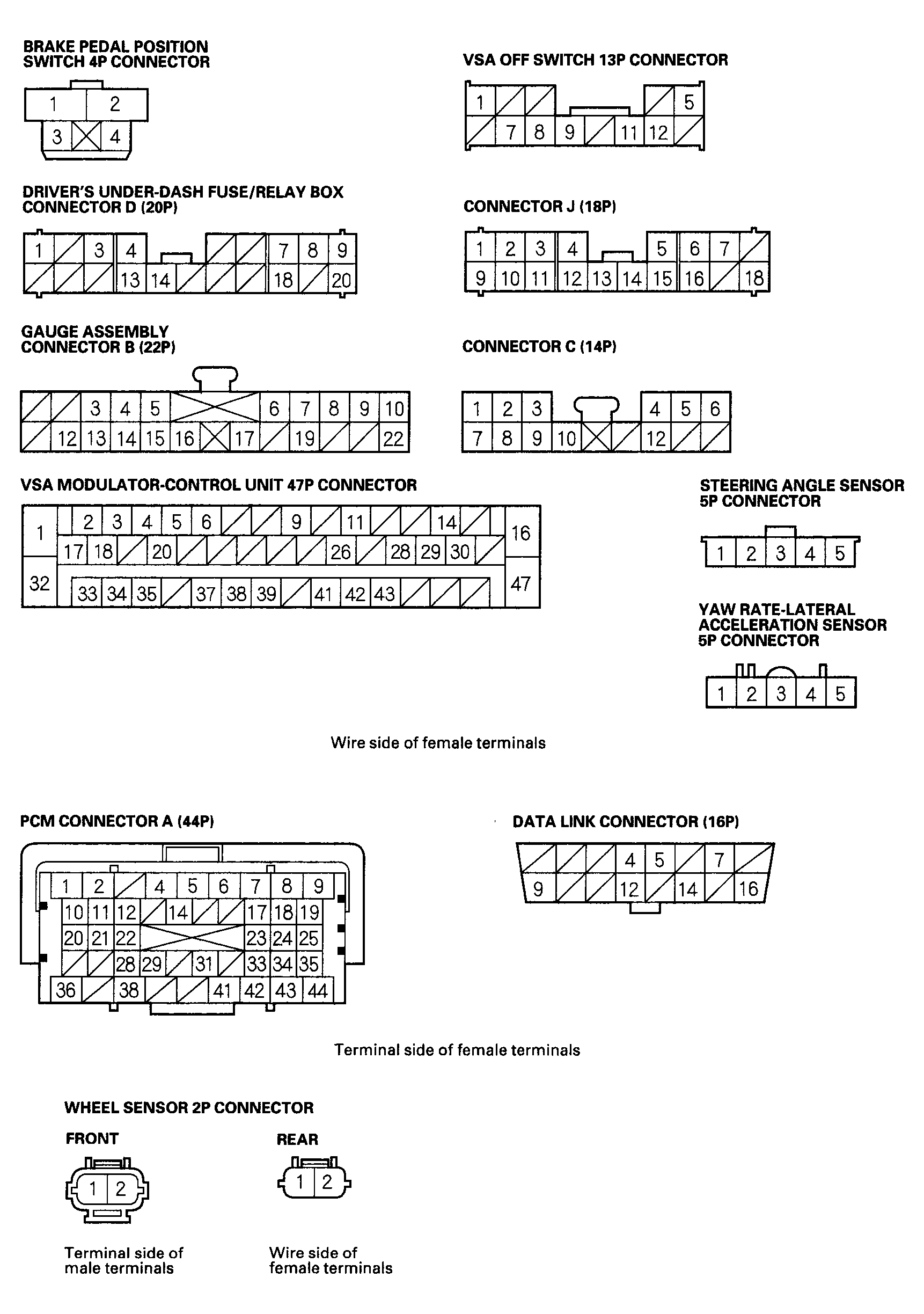

Fig 3: Circuit Diagram - VSA System Components (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
