Combination Light Switch Connector End View
Combination Light Switch Connector End View

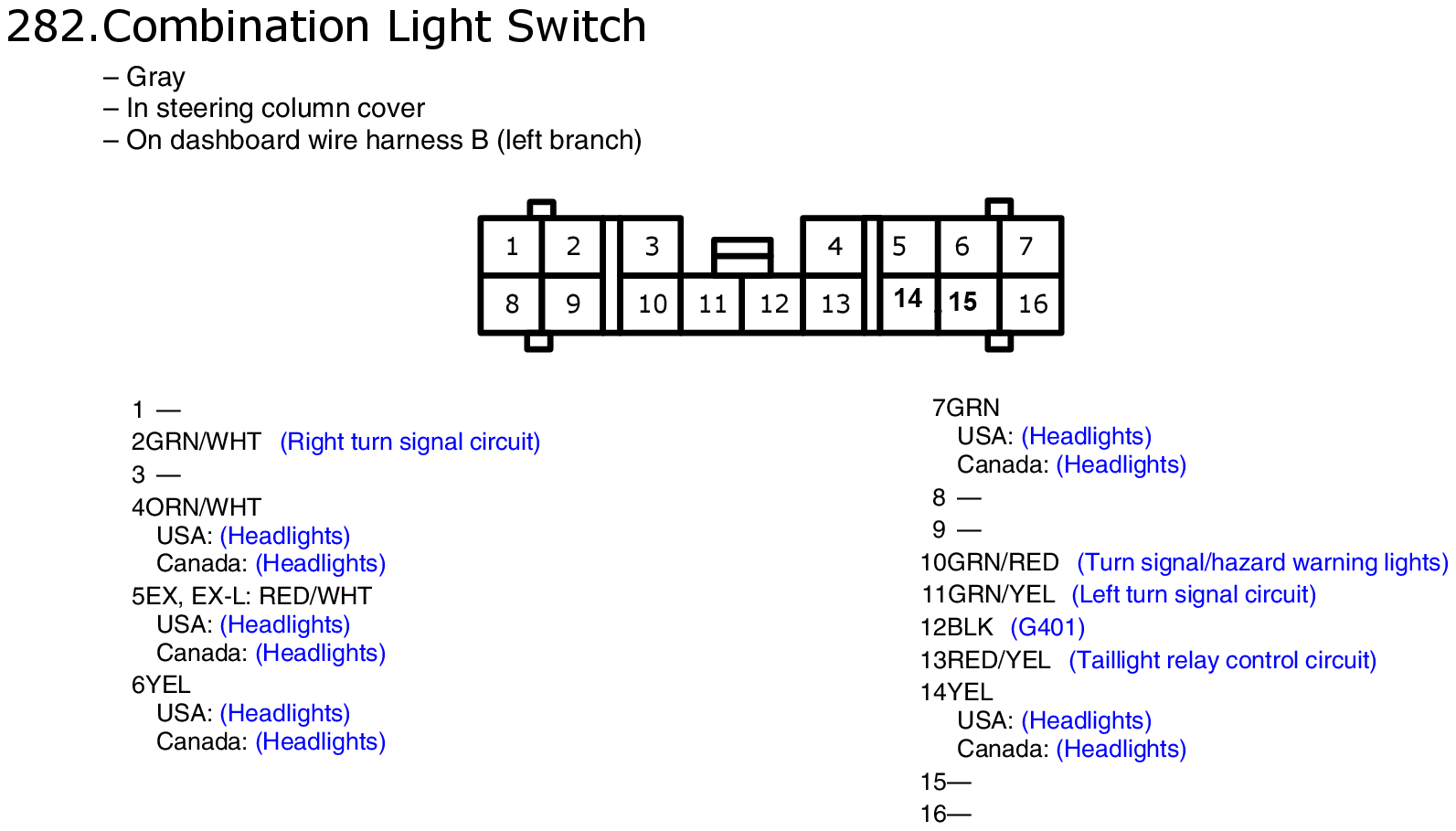

Fig 1: Combination Light Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
