Connector End Views
›
Front Individual Map Lights Connector End View
Front Individual Map Lights Connector End View

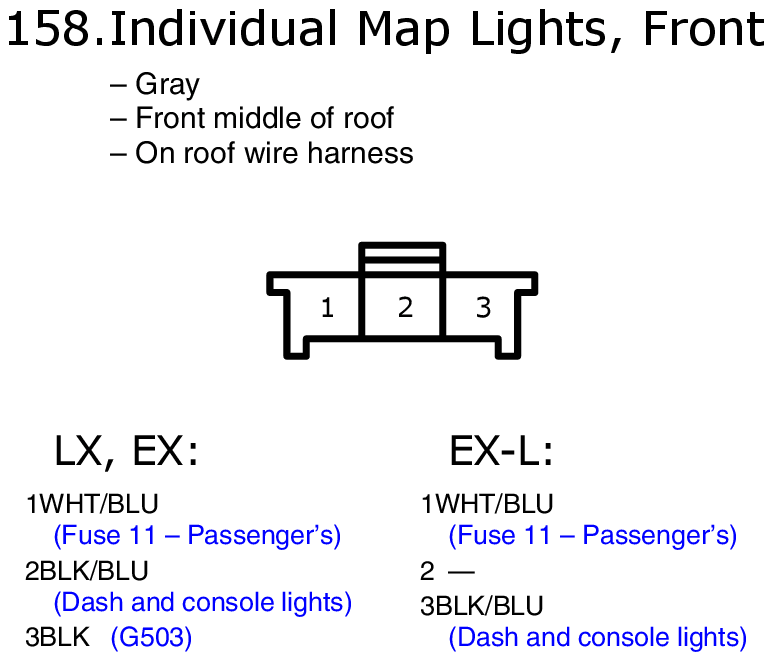

Fig 1: Front Individual Map Lights Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
