Front Mode Control Motor Connector End View
Front Mode Control Motor Connector End View

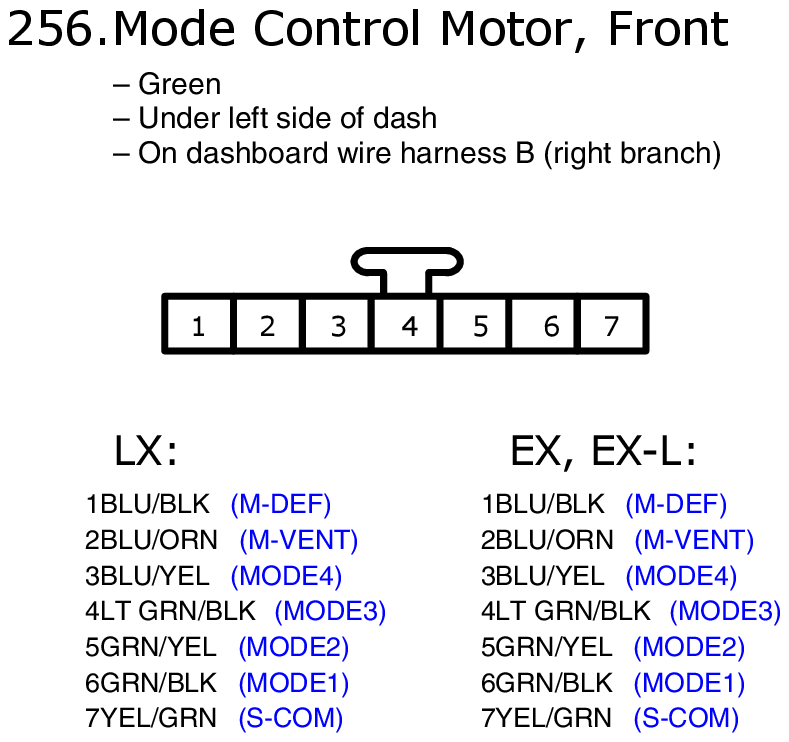

Fig 1: Front Mode Control Motor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
