Heater Control Panel (LX) Connector End View
Heater Control Panel (LX) Connector End View

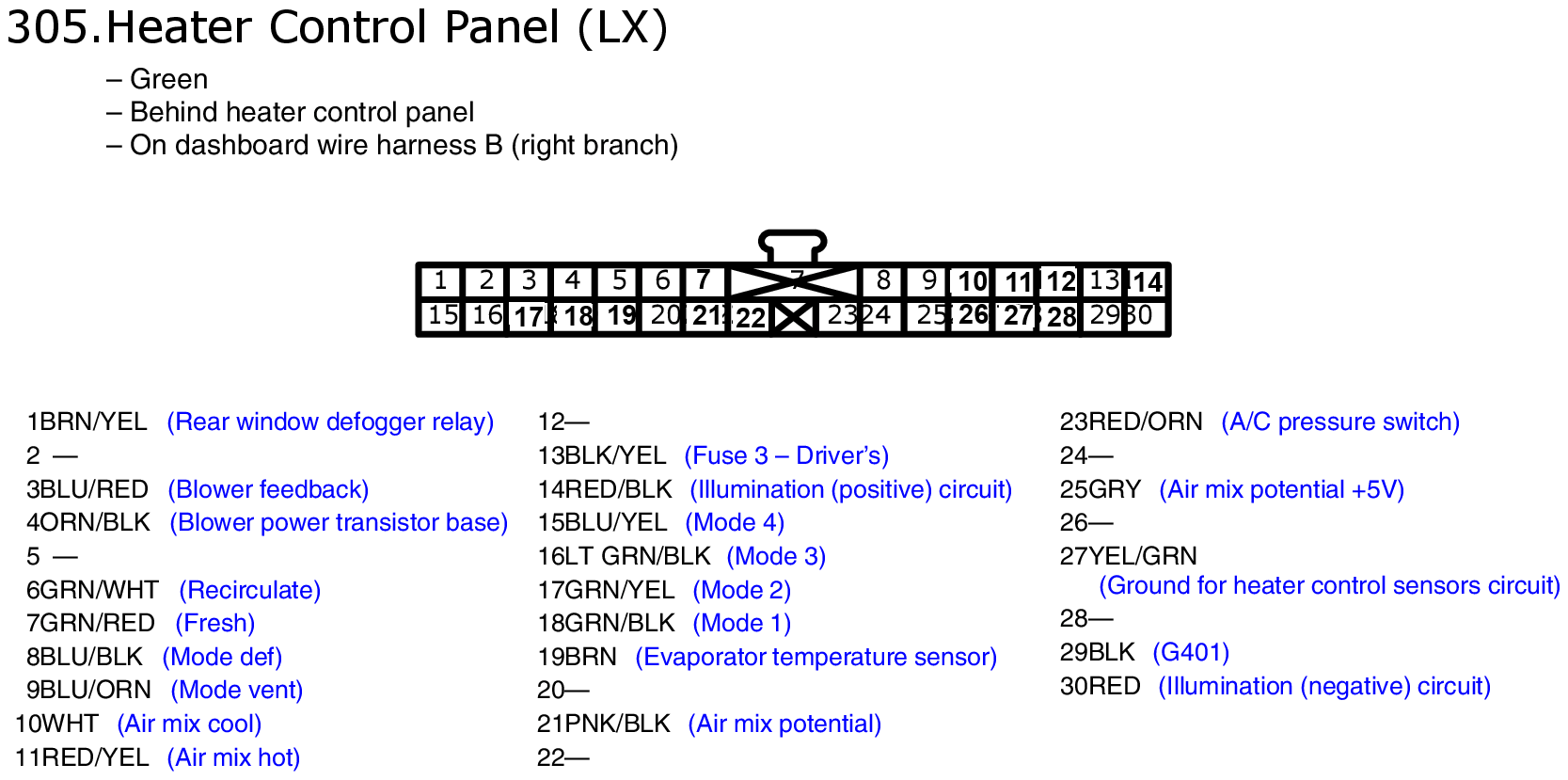

Fig 1: Heater Control Panel (LX) Connector End View
