Right Rear Individual Map Light Connector End View
Right Rear Individual Map Light Connector End View

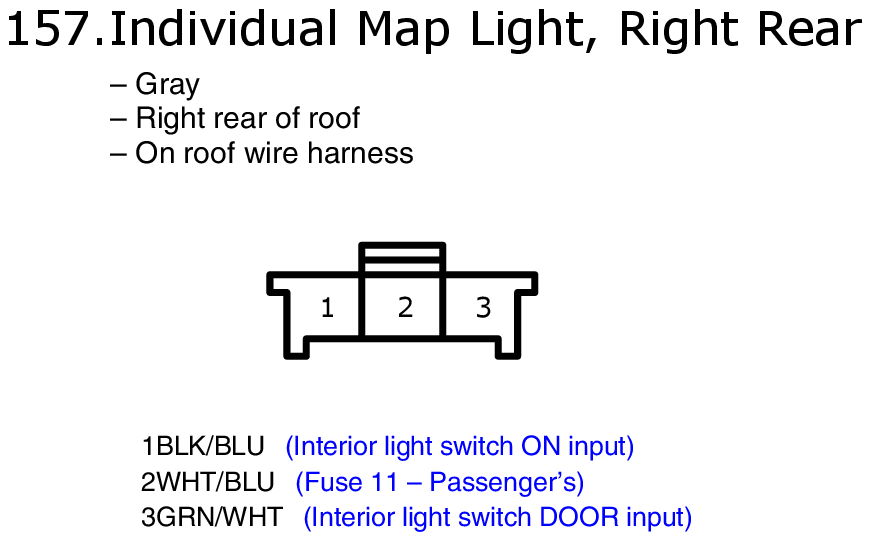

Fig 1: Right Rear Individual Map Light Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
