Honda
›
2005
›
Pilot LX
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Connector End Views
›
Connector End Views
›
TPMS Receiver Unit Connector End View
TPMS Receiver Unit Connector End View

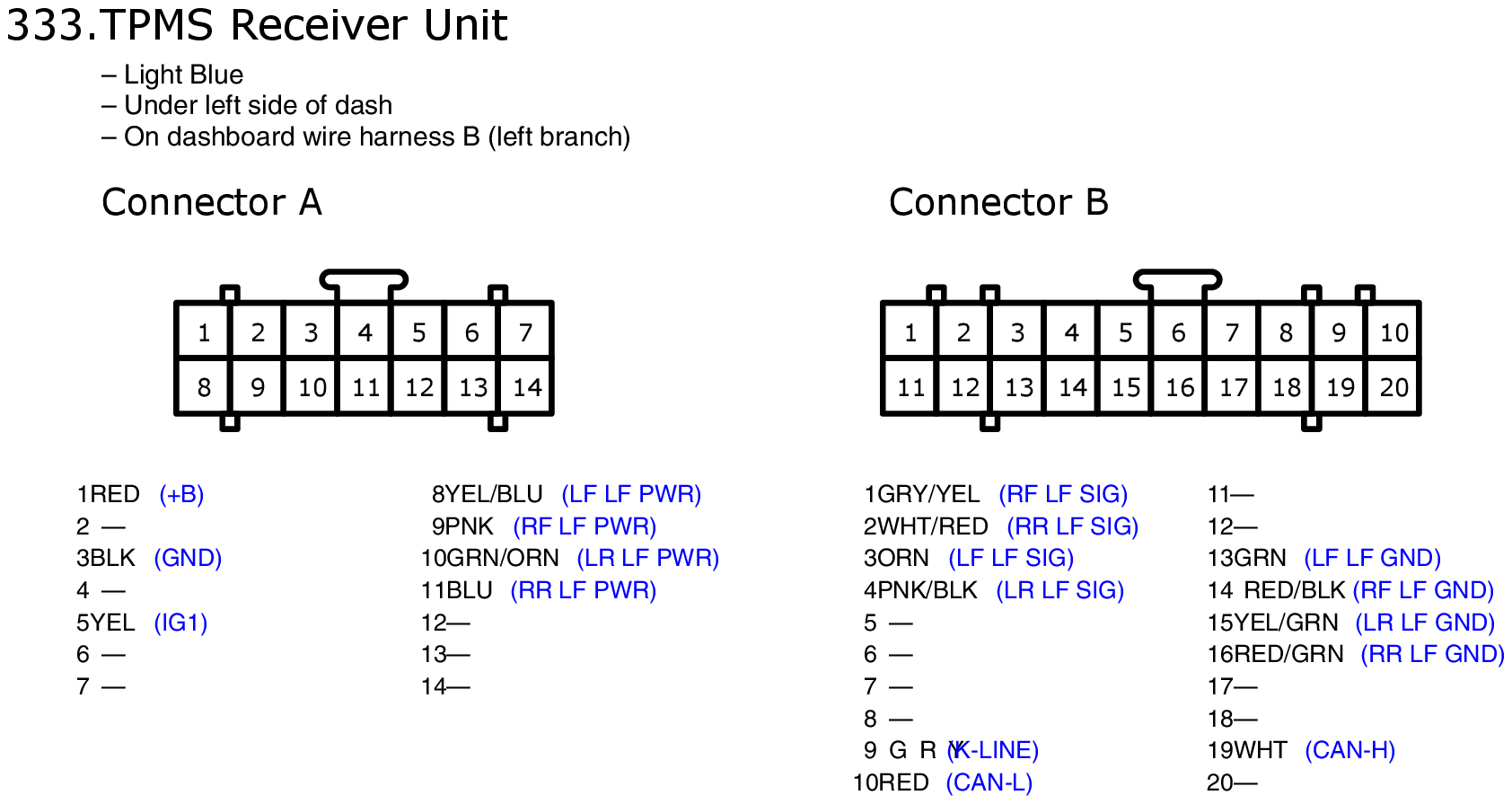

Fig 1: TPMS Receiver Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
