Drive Belt Inspection
- Inspect the belt for cracks and damaged. If the belt is cracked or damaged, replace it.

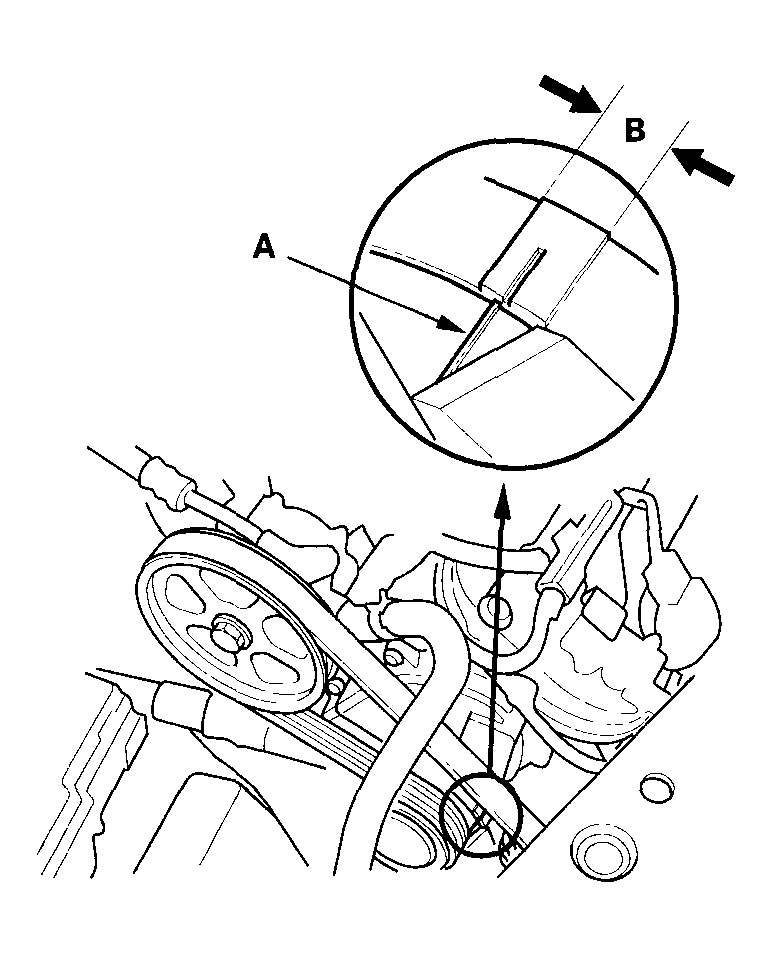

- Check that the auto-tensioner indicator (A) is within the standard range (B) as shown. If it is out of the standard range, replace the drive belt (see DRIVE BELT INSPECTION ).
