Exploded View: Notes

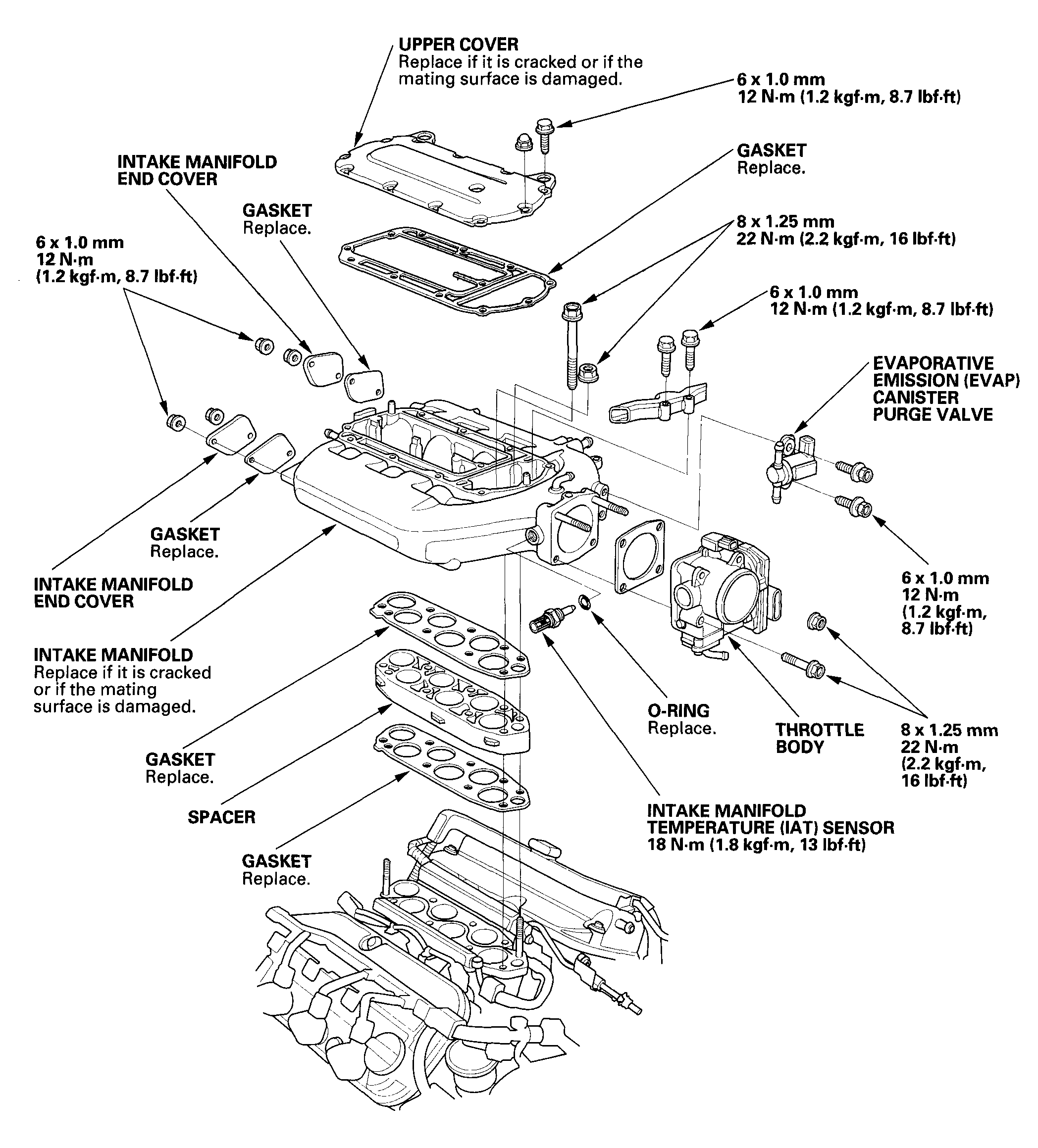

Fig 1: Exploded View Of Intake Manifold
G04545790Courtesy of AMERICAN HONDA MOTOR CO., INC.
