Drain Bolt Installation
NOTE:
When installing the drain bolt, always use new washer.

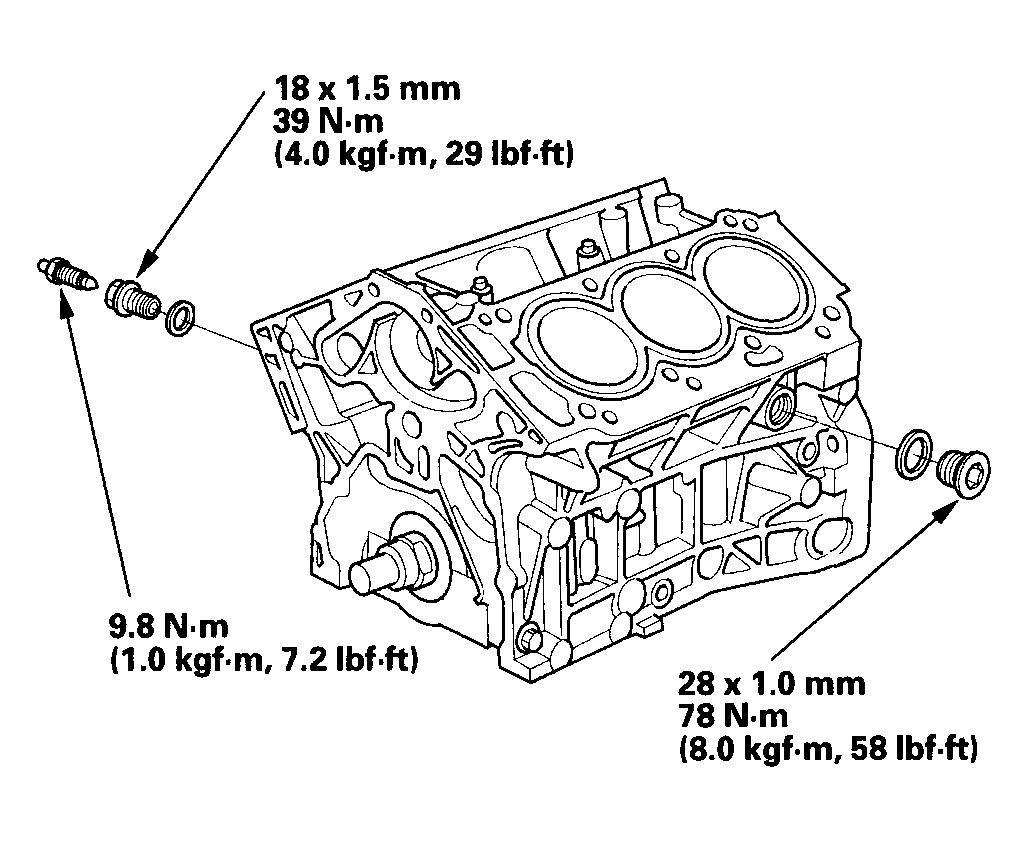

Fig 1: Installing Drain Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
