Front Bank (Bank 2)

  1. Remove the front grille cover (see FRONT GRILLE REPLACEMENT ).
  2. Disconnect the front A/F sensor 8P Connector (A), then remove the front A/F sensor (B).

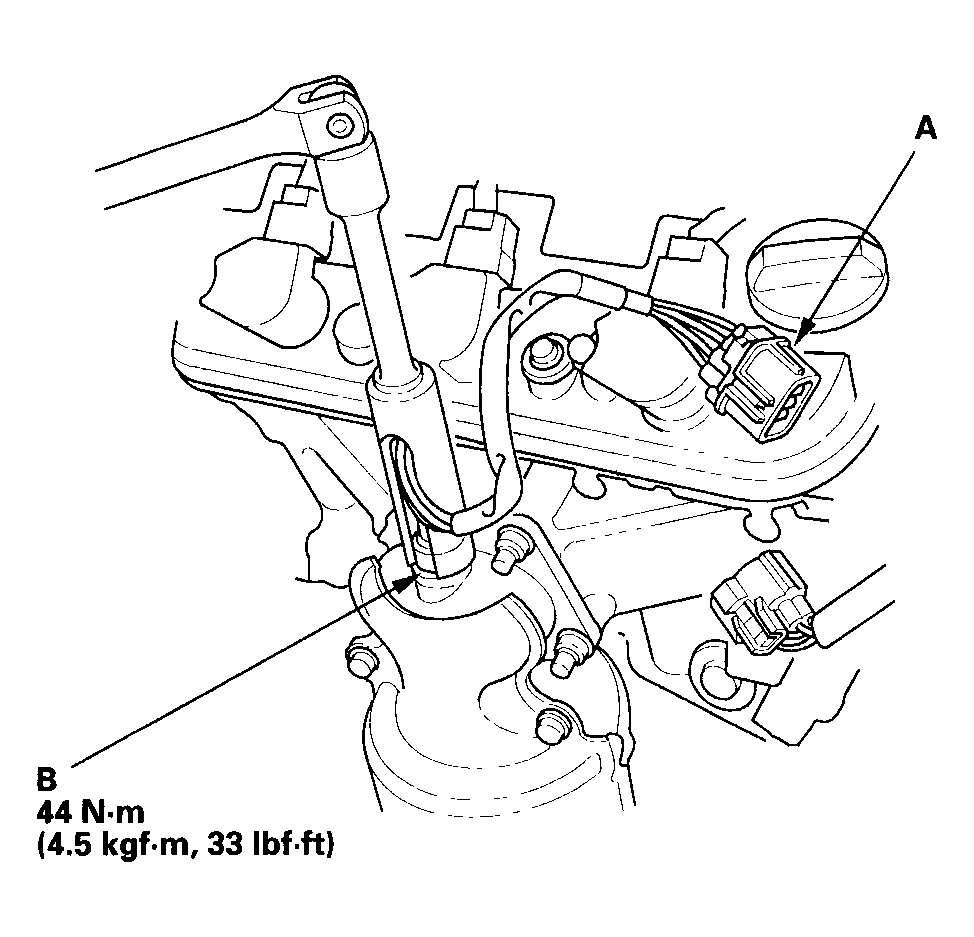

    Fig 1: Disconnecting Front A/F Sensor 8P Connector
    G04546045Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the front A/F sensor in the reverse order of removal.
