Cargo Area Accessory Power Socket Connector End View

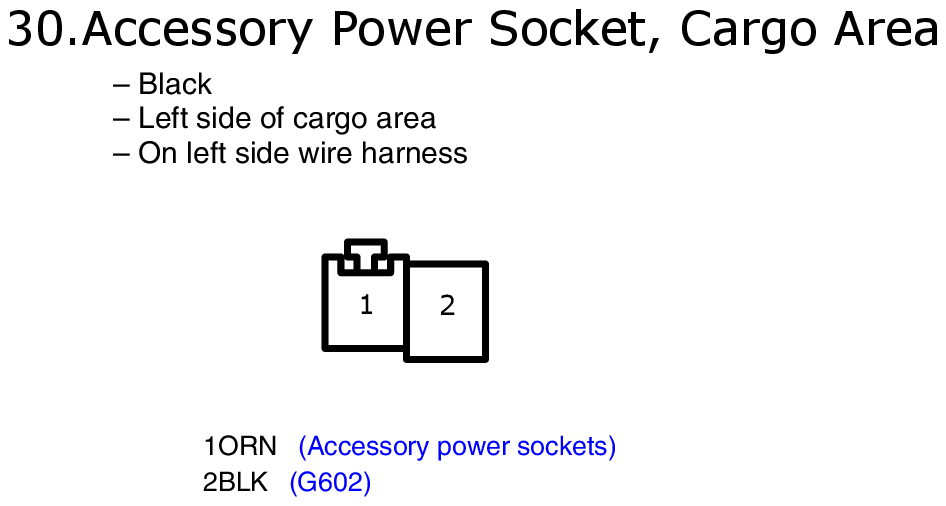

Fig 1: Cargo Area Accessory Power Socket Connector End View
GHHW5684Courtesy of AMERICAN HONDA MOTOR CO., INC.
