Rear Mode Control Motor (LX) Connector End View
Rear Mode Control Motor (LX) Connector End View

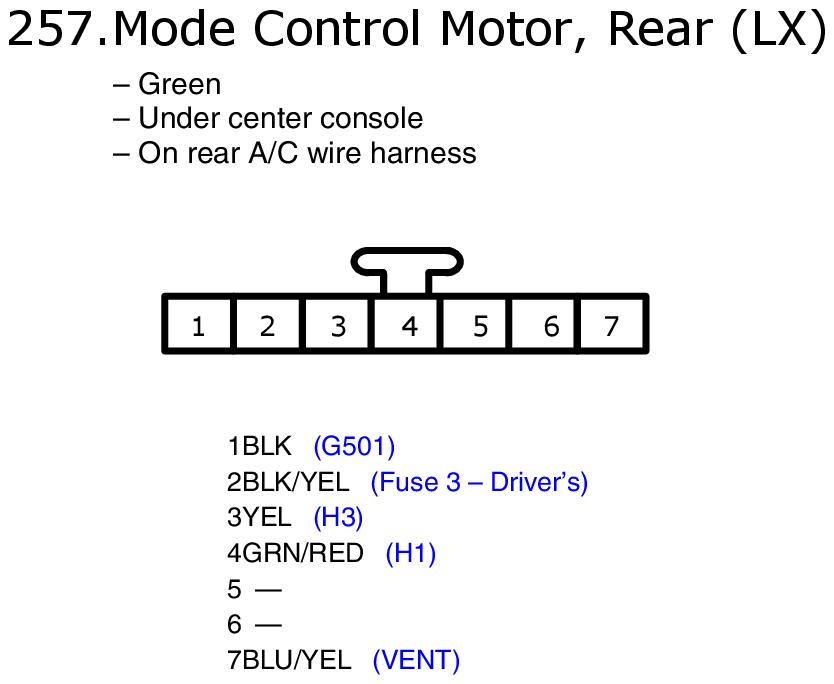

Fig 1: Rear Mode Control Motor (LX) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
