Automatic Transmission
›
A/T Differential
›
Component Location Index
Component Location Index

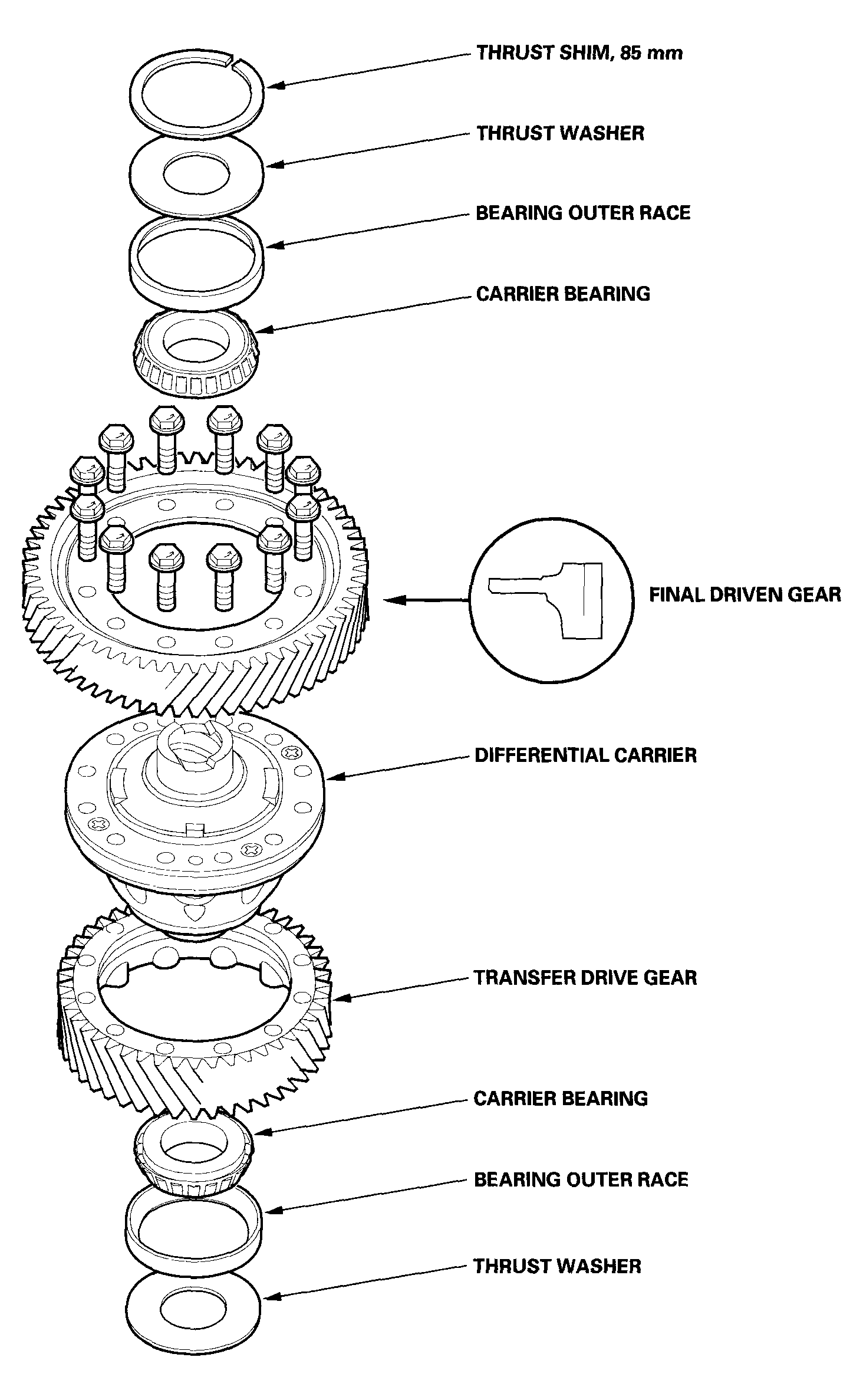

Fig 1: Locating A/T Differential Component
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
