System Indicator: Notes

This system has four indicators: ABS indicator (A), VSA indicator (B), VSA activation indicator (C) and brake system indicator (D). When the system detects a problem, it illuminates the appropriate indicators. Depending on the failure, the control unit determines which indicators are turned on.

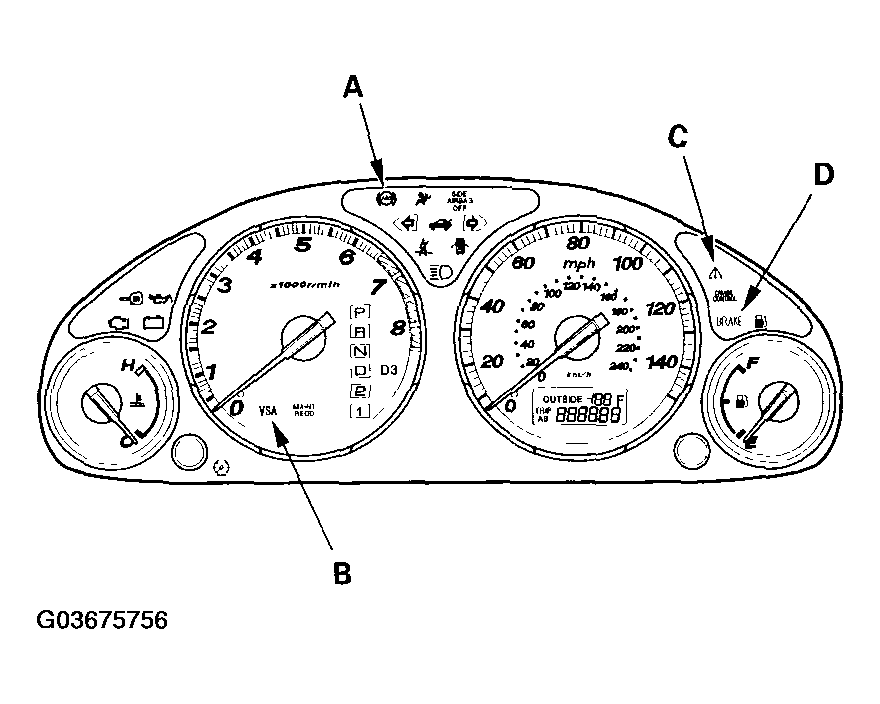

Fig 1: Identifying System Indicator

Courtesy of AMERICAN HONDA MOTOR CO., INC.

• When ABS function is lost:

  ABS indicator, VSA indicator, and VSA activation indicator turn on.

• When VSA function is lost:

  VSA indicator and VSA activation indicator turn on.

• When all functions are lost:

  All four indicators turn on.

• When the gauge assembly detects F-CAN circuit problem:

  ABS indicator, VSA indicator, and brake system indicator turn on.
