Sensor Cluster Replacement

NOTE:
  • Do not damage or drop the sensor as it is sensitive.
  • Do not use an impact wrench.
  1. Remove the passenger's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
  2. Lift up the floor carpet (A).

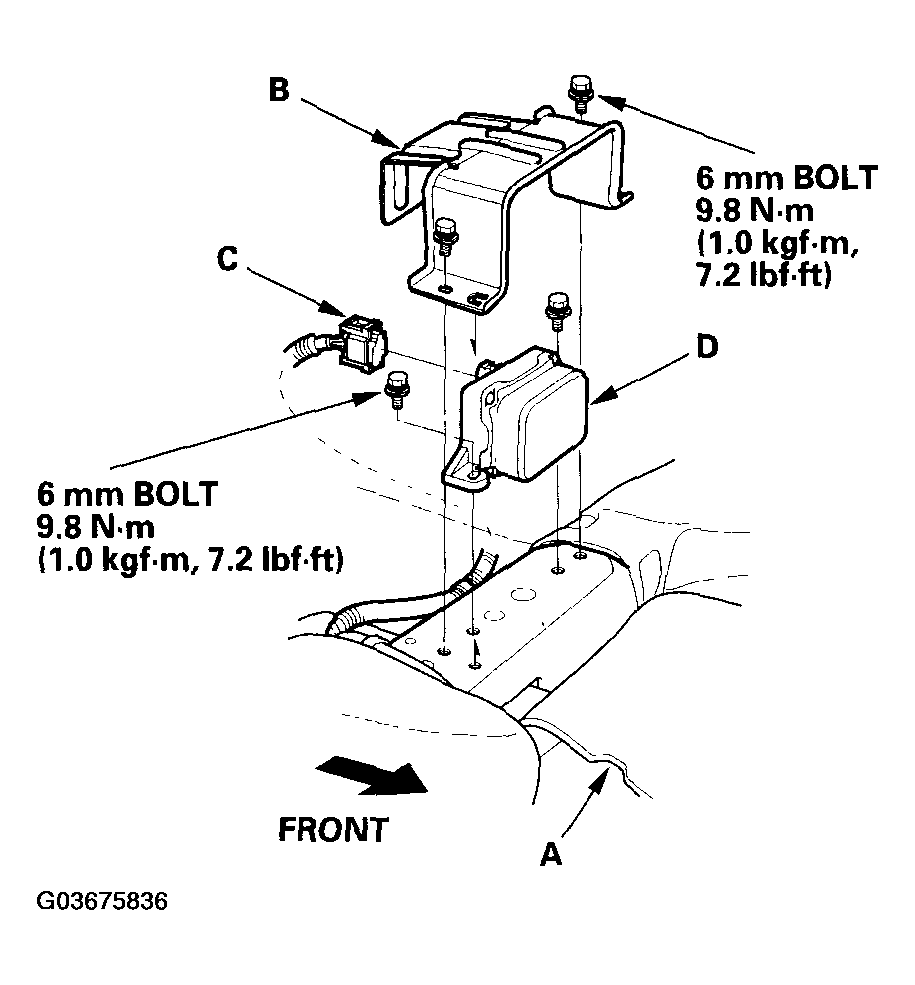

    Fig 1: Removing The Sensor Cluster Bracket With Torque Specifications
    G03675836Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the sensor cluster bracket (B).
  4. Disconnect the 6P connector (C), and remove the sensor cluster (D).
  5. Install in the reverse order of removal.
