Steering Angle Sensor Replacement

NOTE: Do not damage or drop the combination switch as the steering angle sensor is sensitive to shock and vibration.
  1. Remove the steering wheel (see STEERING WHEEL REMOVAL ) and steering column cover (see STEERING COLUMN REMOVAL AND INSTALLATION ).
  2. Remove the combination light switch assembly (see STEERING COLUMN REMOVAL AND INSTALLATION ).
  3. Remove the combination light switch (A) and the wiper/washer switch (B).

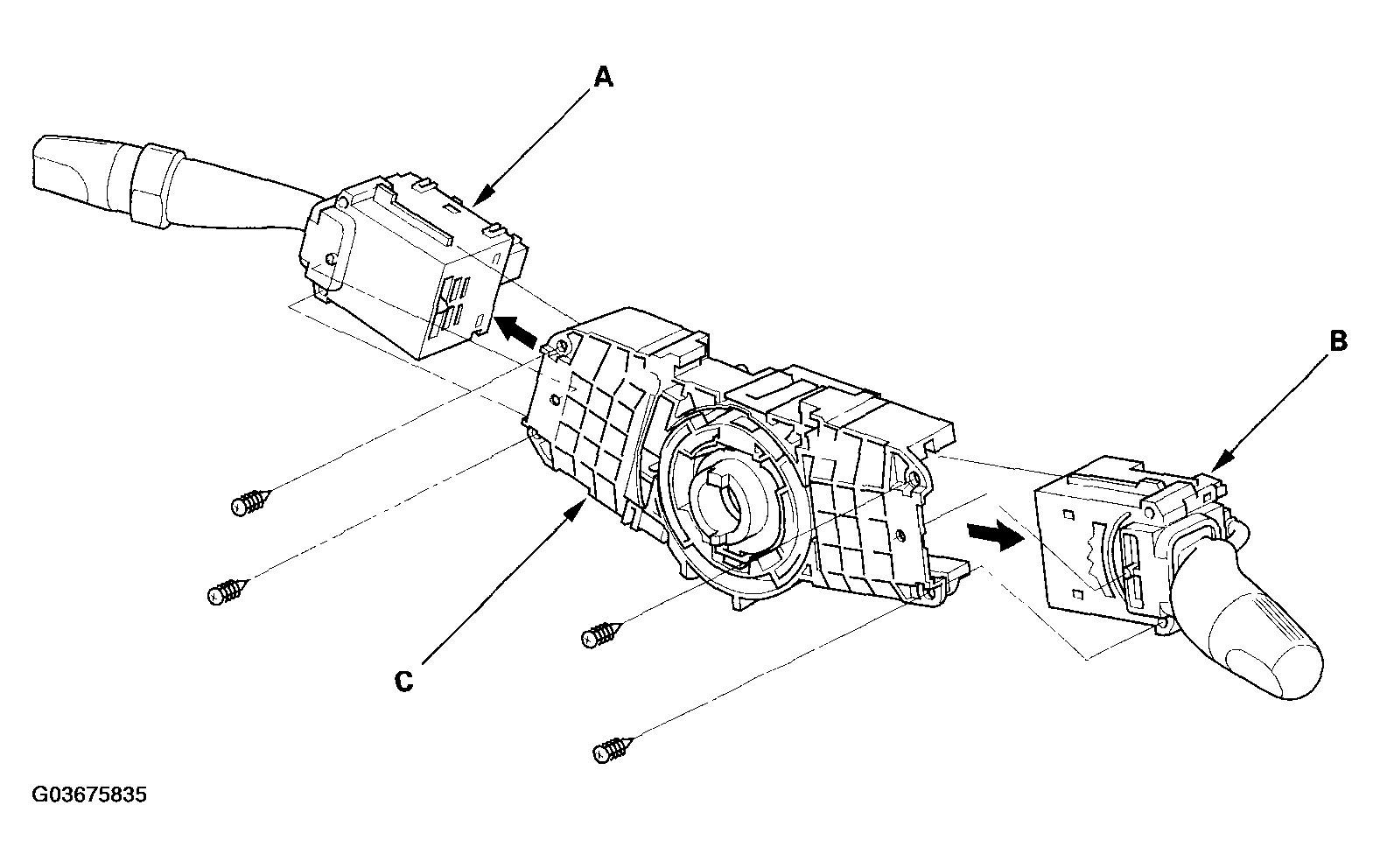

    Fig 1: Removing Combination Light Switch
    G03675835Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Replace the combination switch body complete (C).
  5. Install the combination switch in the reverse order of removal.
    NOTE: Do not remove the steering angle sensor from the combination switch body.
