VSA Modulator-Control Unit Removal and Installation: Removal

Pull up the lock (A) of the VSA modulator-control unit 47P connector (B), and the connector disconnects itself.

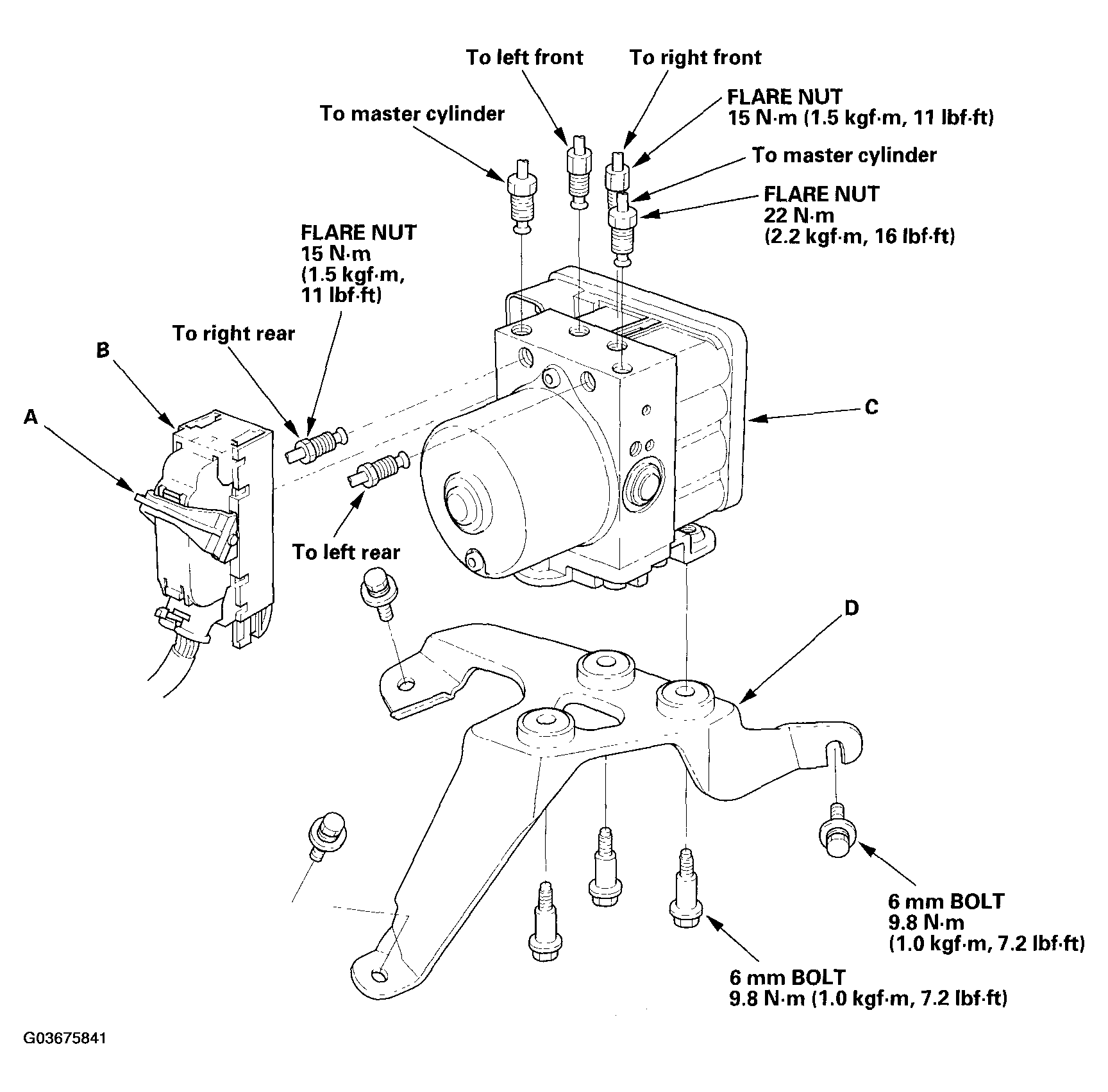

Fig 1: Pulling Up Lock Of VSA Modulator-Control Unit 47P Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the six brake lines.
Remove the three 6 mm bolts, then remove the VSA modulator-control unit (C)/bracket (D) from the body.
Remove the three 6 mm bolts, then remove the VSA modulator-control unit from the bracket.
