Heater Control Panel Removal/Installation

Special Tools Required

KTC trim tool set SOJATP2014

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
Take care not to scratch the dashboard and related parts.

Remove the dashboard pocket (see DASHBOARD POCKET REMOVAL/INSTALLATION ).
Pull the parking brake lever.
Remove the screws (A), and pull out the heater control panel (B) to release the clips (C). Disconnect the heater control unit connector (D), then remove the heater control panel.

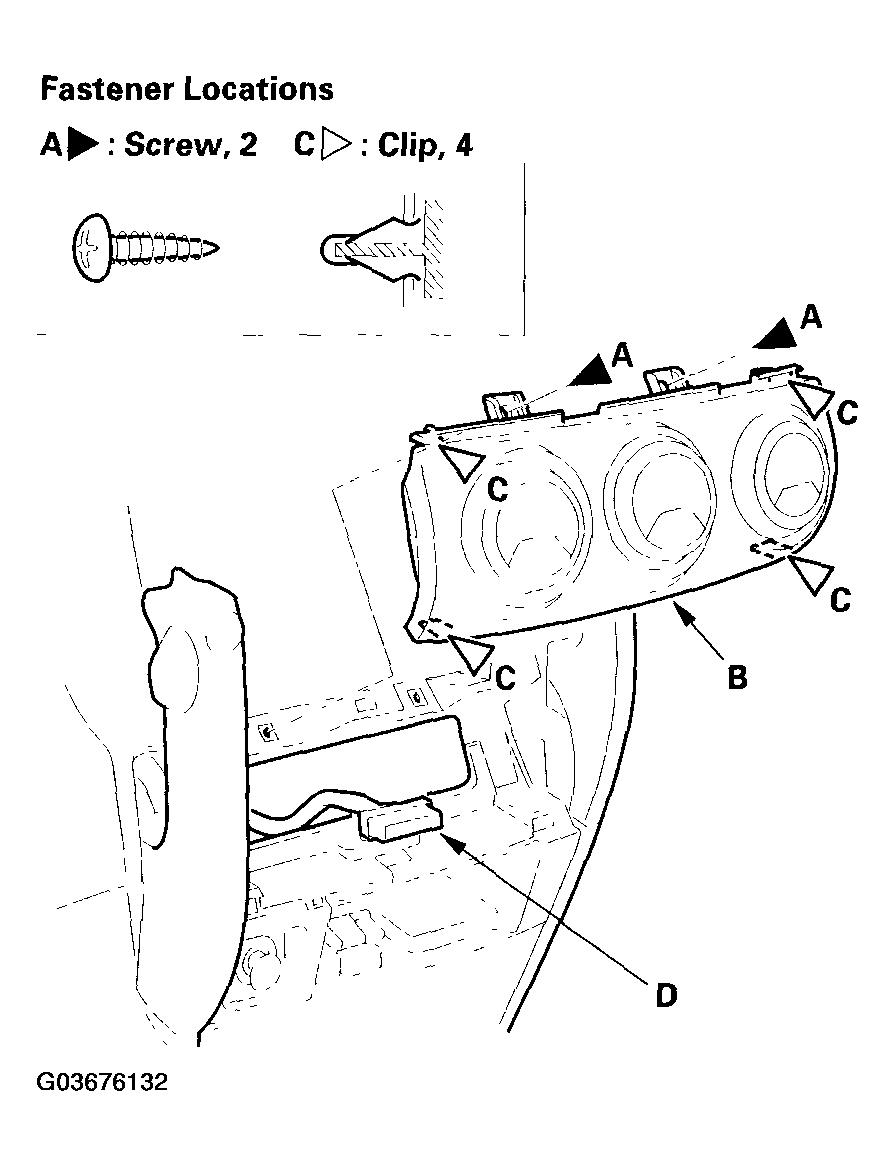

Fig 1: Pulling Out Heater Control Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the panel in the reverse order of removal, and note these items:
- Make sure the heater control unit connector is plugged in properly.
- Replace any damaged clips.
- Push the clips into place securely.
