Automatic Transmission
›
Automatic Transmission
›
System Description
›
Electronic Control System
›
PCM Electrical Connections
PCM Electrical Connections

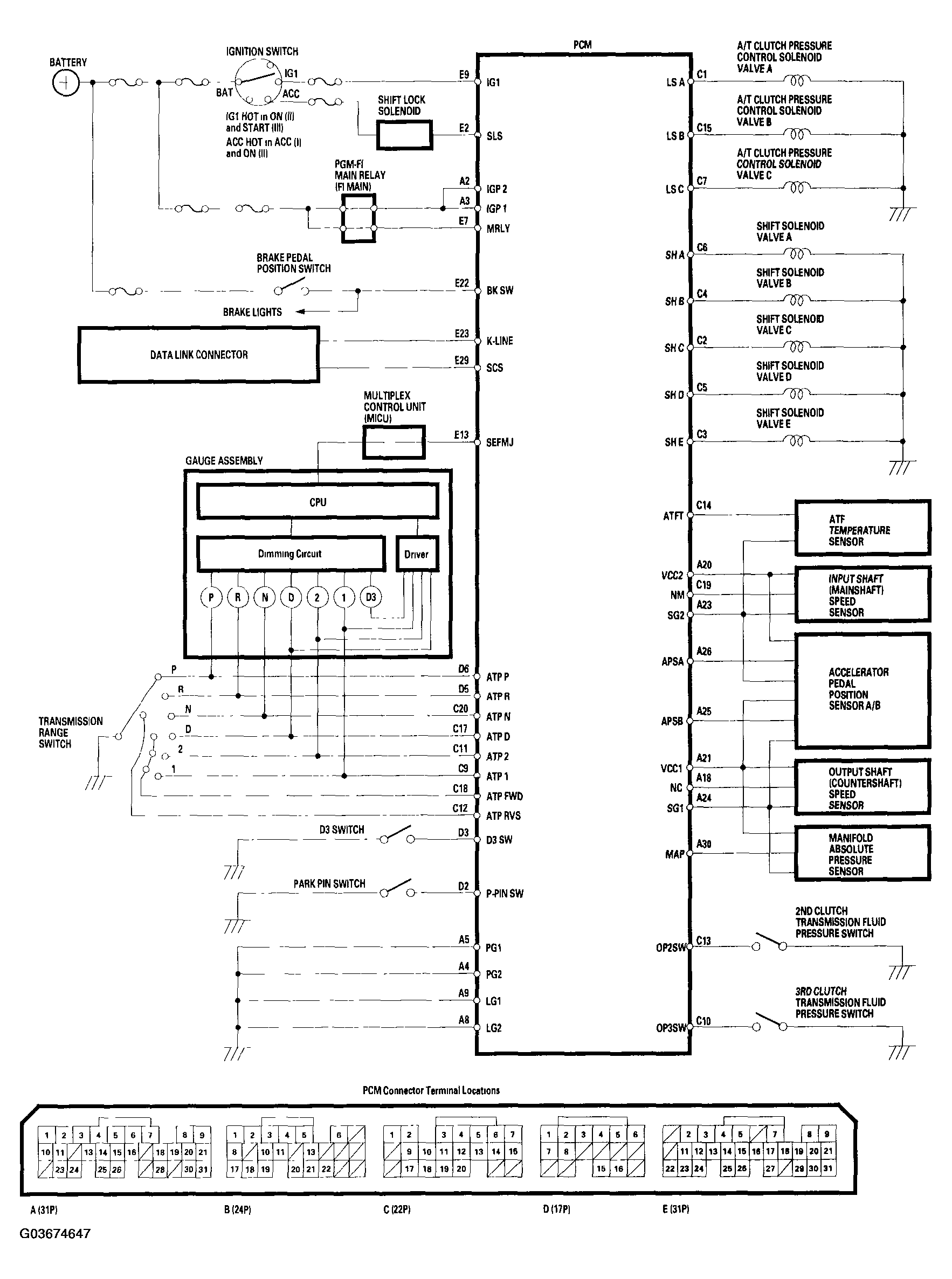

Fig 1: Automatic Transmission PCM Electrical Connections Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
