ELD Replacement

Remove the ECM (see ECM REPLACEMENT ).
Remove the under-hood fuse/relay box (see REMOVAL AND INSTALLATION ).
Remove the screw (A).

Fig 1: Identifying ELD Screw
Courtesy of AMERICAN HONDA MOTOR CO., INC.

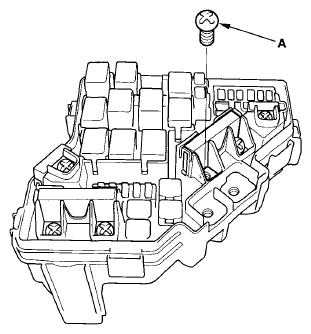

Turn the housing over, then remove the screw (A).

Fig 2: Identifying ELD Screw
Courtesy of AMERICAN HONDA MOTOR CO., INC.

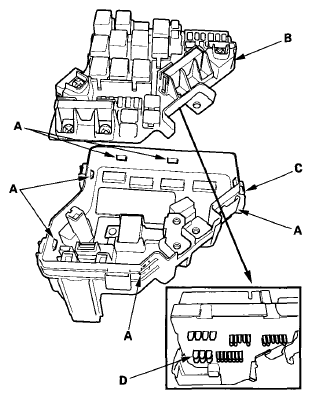

Turn the housing over again. Using two flat-tip screwdrivers, release the tabs (A), and pry up the fuse/relay box base (B) from the fuse/relay box housing (C).
NOTE: Make sure the terminals (D) are not bent or damaged.

Fig 3: Identifying Fuse, Relay Box Base And Relay Box Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the housing over again, then remove the ELD (A).

Fig 4: Identifying ELD Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
