DTC P0A65 (29): Motor Current W Phase Signal Circuit High Input: Notes

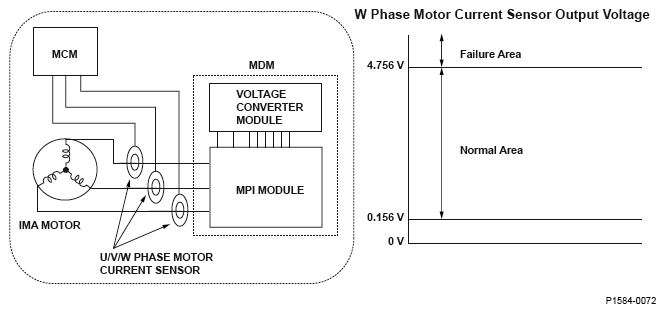

Fig 1: Motor Current W Phase Signal Circuit High Input - Circuit Diagram

G04817839
