Home › Honda › 2006 › Insight Standard › Repair and Diagnosis › Engine Performance › System › Advanced Diagnostics › DTC P1445 (62): Bypass Contactor Problem › Notes

DTC P1445 (62): Bypass Contactor Problem: Notes

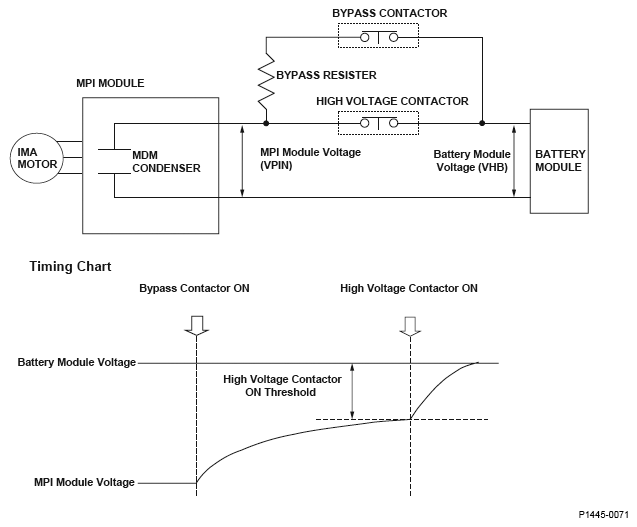

Fig 1: Bypass Contactor - Circuit Diagram
G04817866
