Driver's Under-Dash Fuse/Relay Box Connector End View

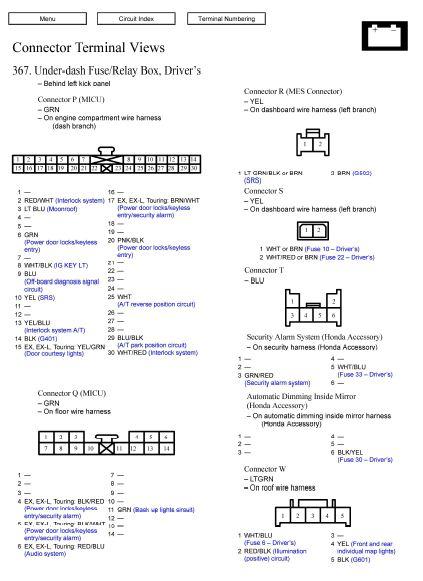

Fig 1: Driver's Under-Dash Fuse/Relay Box Connector End View (1 of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

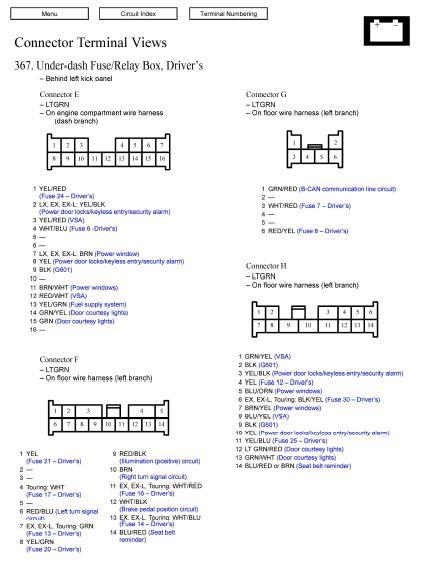

Fig 2: Driver's Under-Dash Fuse/Relay Box Connector End View (2 of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

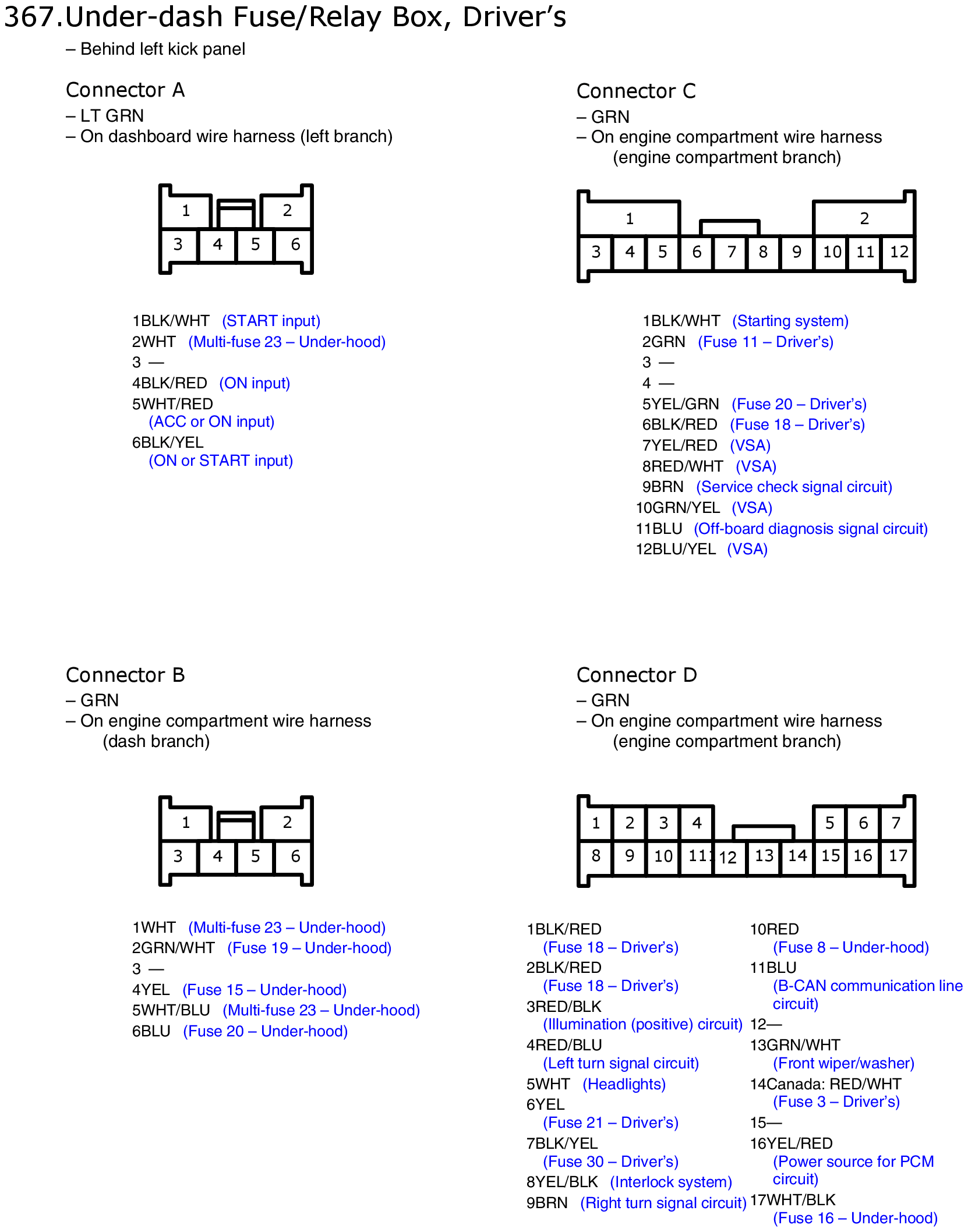

Fig 3: Driver's Under-Dash Fuse/Relay Box Connector End View (3 of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

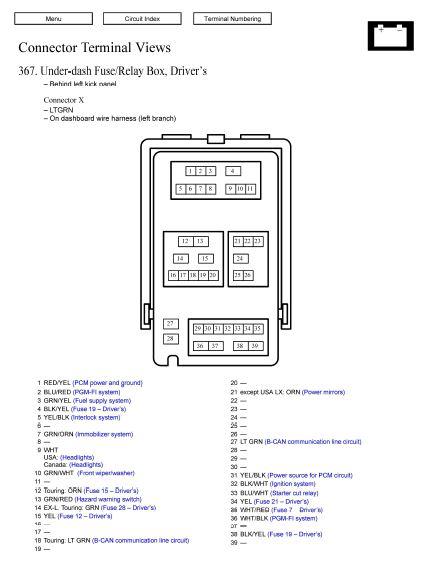

Fig 4: Driver's Under-Dash Fuse/Relay Box Connector End View (4 of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

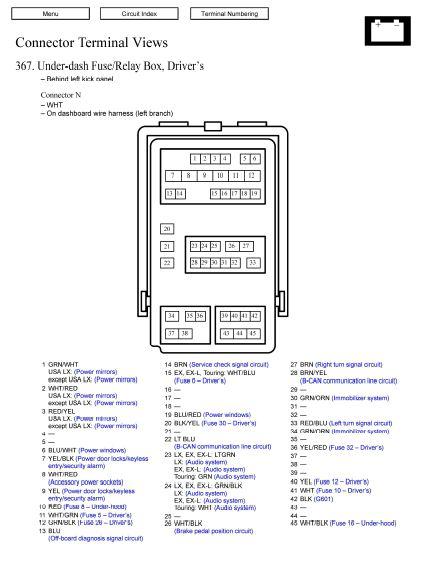

Fig 5: Driver's Under-Dash Fuse/Relay Box Connector End View (5 of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

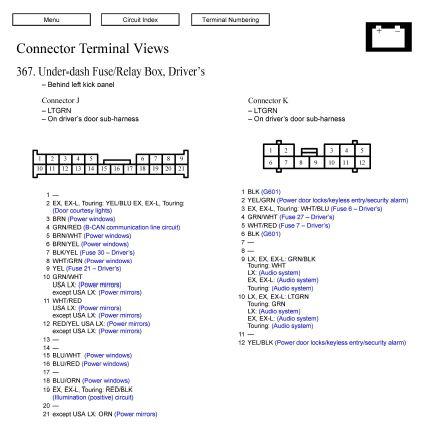

Fig 6: Driver's Under-Dash Fuse/Relay Box Connector End View (6 of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
