Fan Control Relay And DRL Relay Connector End View
Fan Control Relay And DRL Relay Connector End View

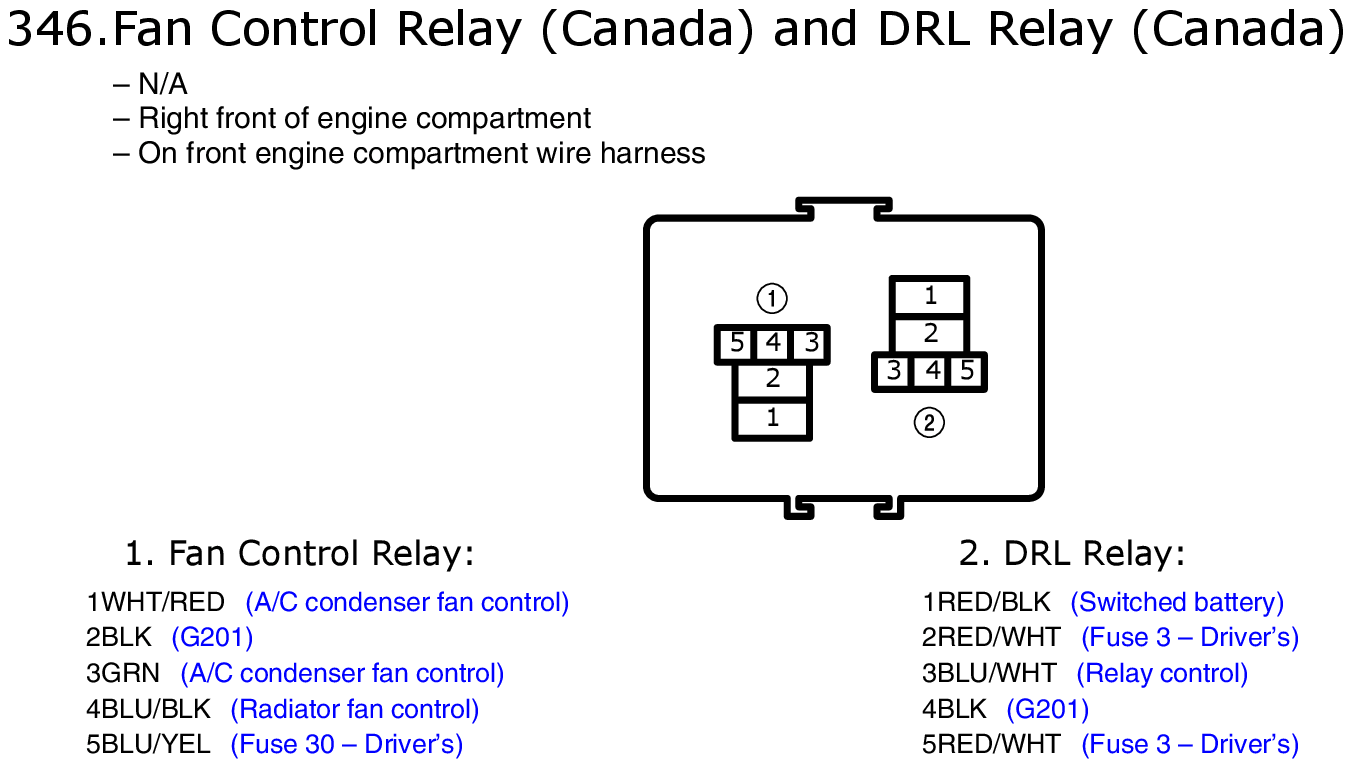

Fig 1: Fan Control Relay And DRL Relay Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
