Steering Angle Sensor Replacement

NOTE: Do not damage or drop the combination switch as the steering angle sensor is sensitive to shock and vibration.
  1. Remove the steering wheel (see STEERING WHEEL REMOVAL ).
  2. Remove the steering column covers and combination switch assembly (see step 5 in STEERING COLUMN REMOVAL AND INSTALLATION ).
  3. Remove the combination light switch (A) and the wiper/washer switch (B).

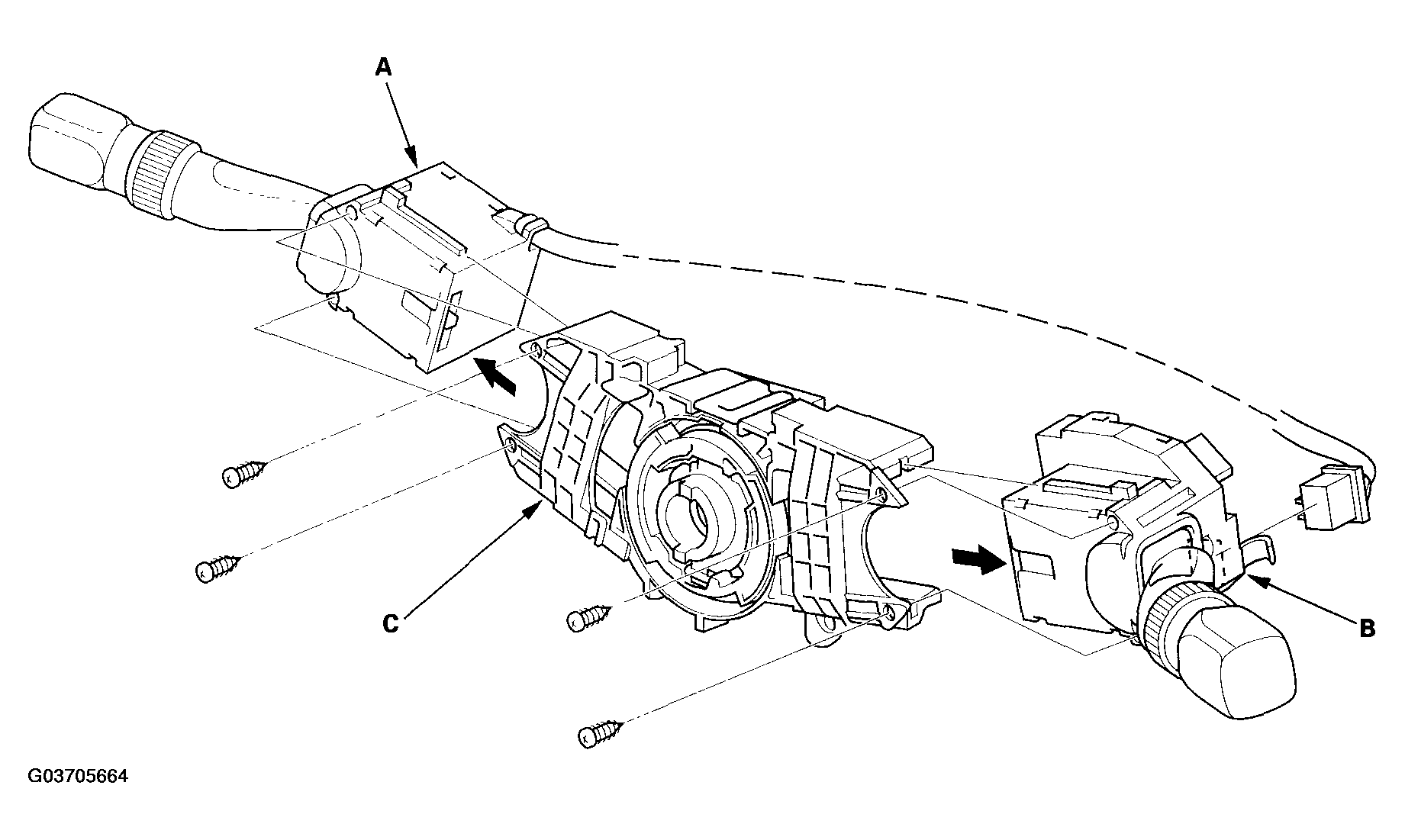

    Fig 1: Removing Combination Light Switch And Wiper/Washer Switch
    G03705664Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Replace the combination switch body (C).
  5. Install the combination switch in the reverse order of removal.
    NOTE: Do not remove the steering angle sensor from the combination switch body.
  6. Do the VSA sensor neutral position memorization (see VSA SENSOR NEUTRAL POSITION MEMORIZATION  ).
