Pressure Retaining Mode

VSA NO valve open, VSA NC valve closed, inlet valve closed, outlet valve closed.

Caliper fluid is retained by the inlet valve and outlet valve.

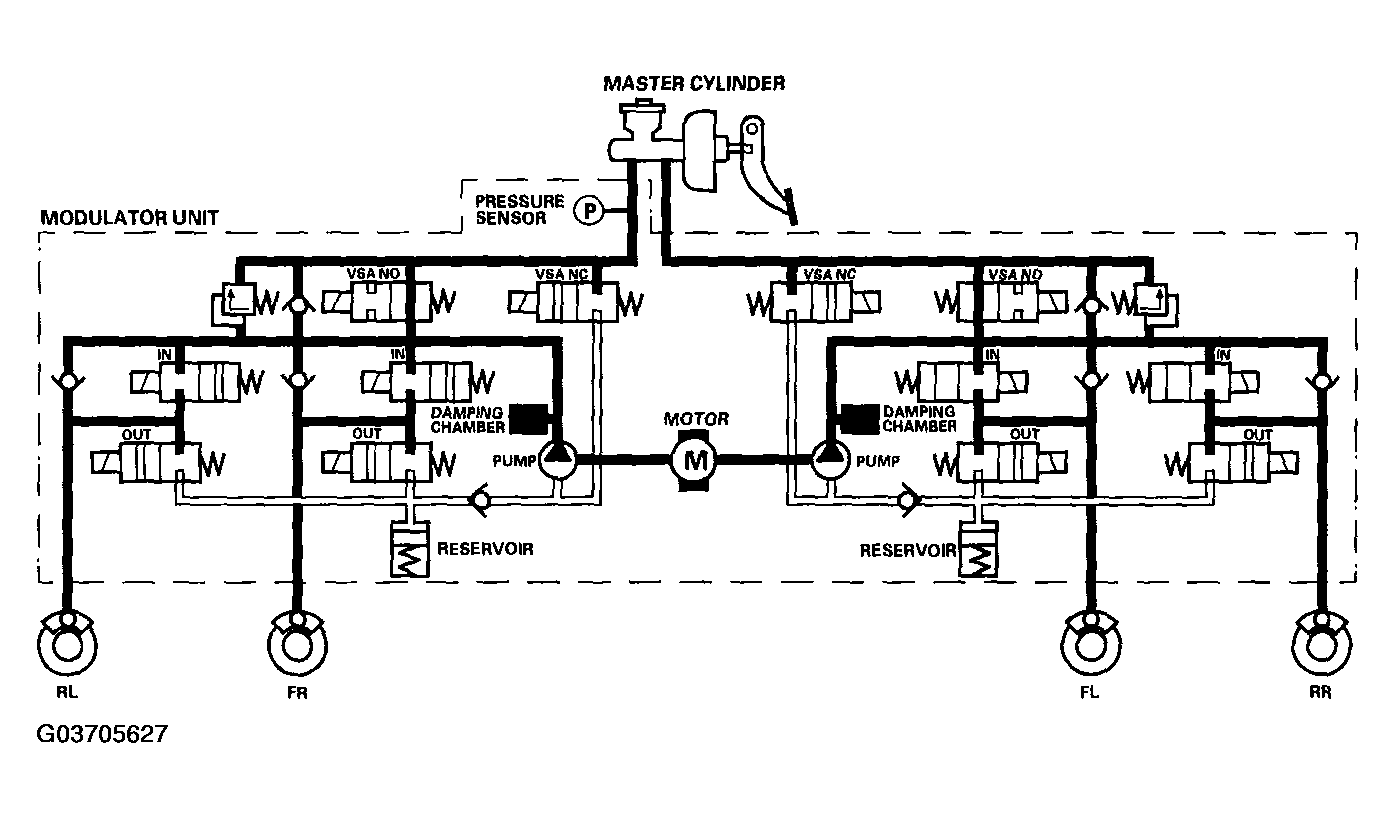

Fig 1: ABS Control Of Pressure Retaining Mode

Courtesy of AMERICAN HONDA MOTOR CO., INC.
