Pressure Reducing Mode

VSA NO valve open, VSA NC valve closed, inlet valve open, outlet valve closed, pump motor ON.

Caliper fluid flows through the VSA NO valve to the master cylinder.

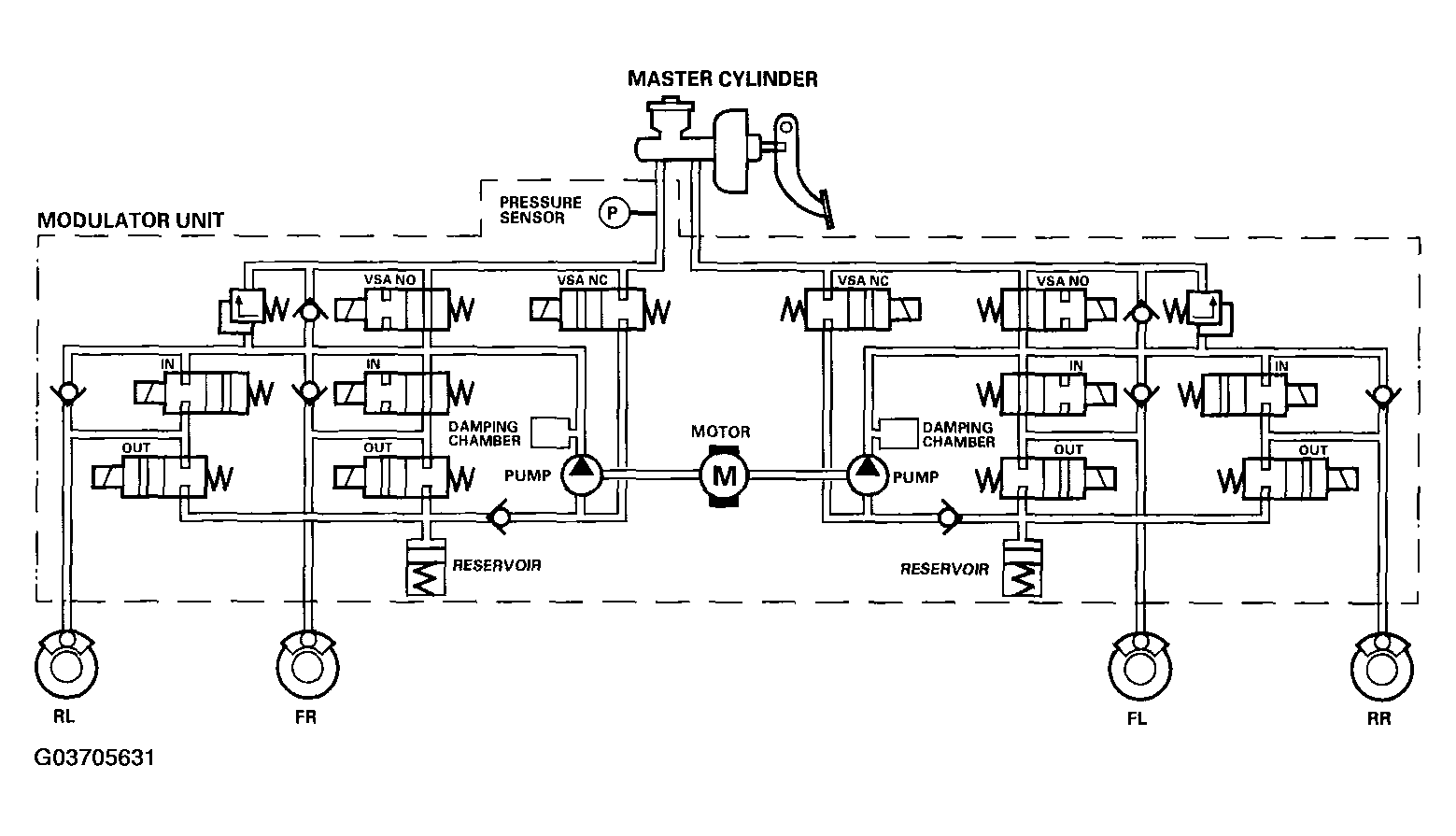

Fig 1: System Diagram TCS Control Of Pressure Reducing Mode

Courtesy of AMERICAN HONDA MOTOR CO., INC.
