Pressure Retaining Mode

VSA NO valve closed, VSA NC valve closed, inlet valve open, outlet valve closed, pump motor ON.

Front caliper fluid is retained by the VSA NO valve and VSA NC valve.

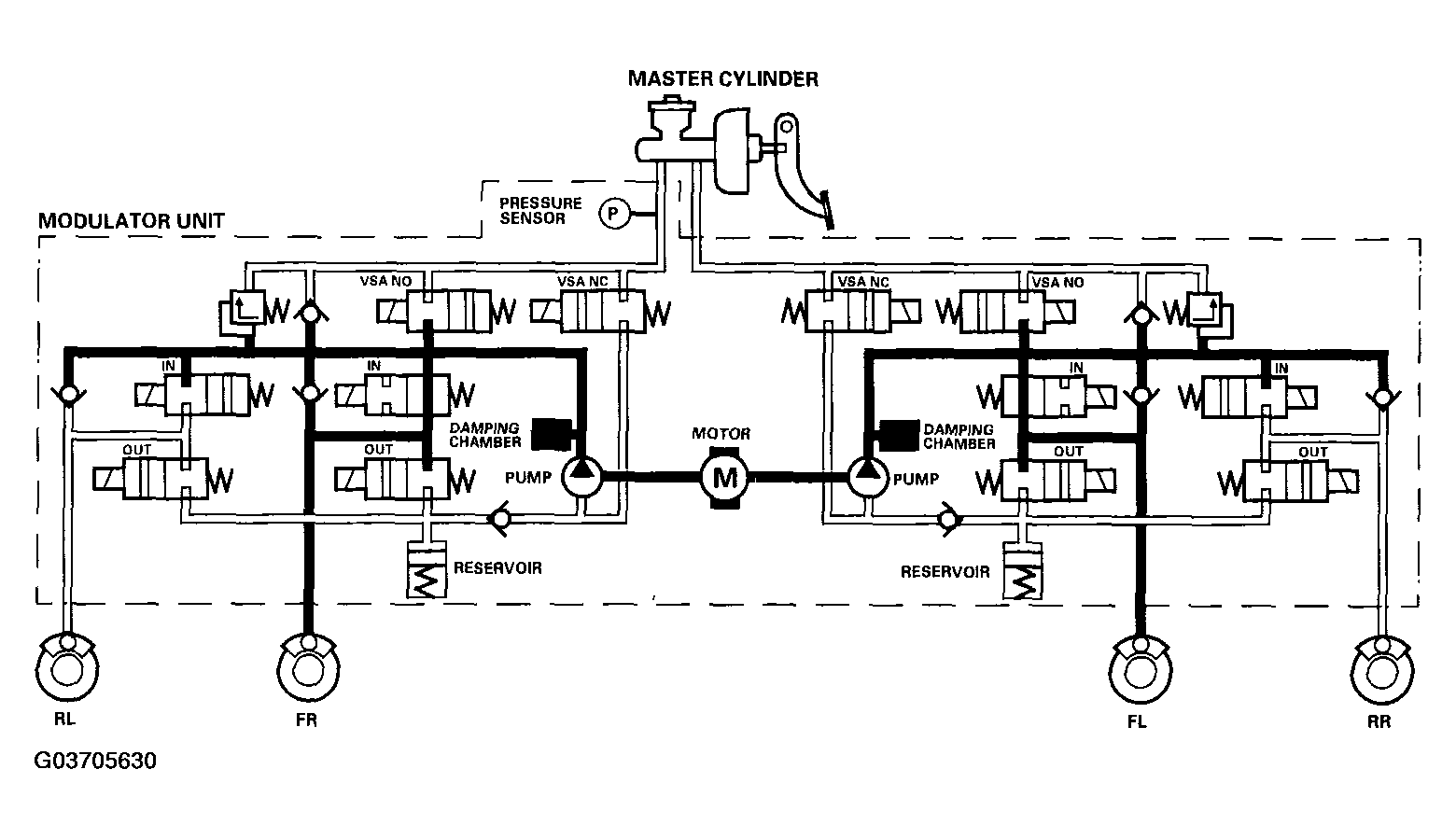

Fig 1: TCS Control Of Pressure Retaining Mode

Courtesy of AMERICAN HONDA MOTOR CO., INC.
