Passenger's Under-dash Fuse/Relay Box

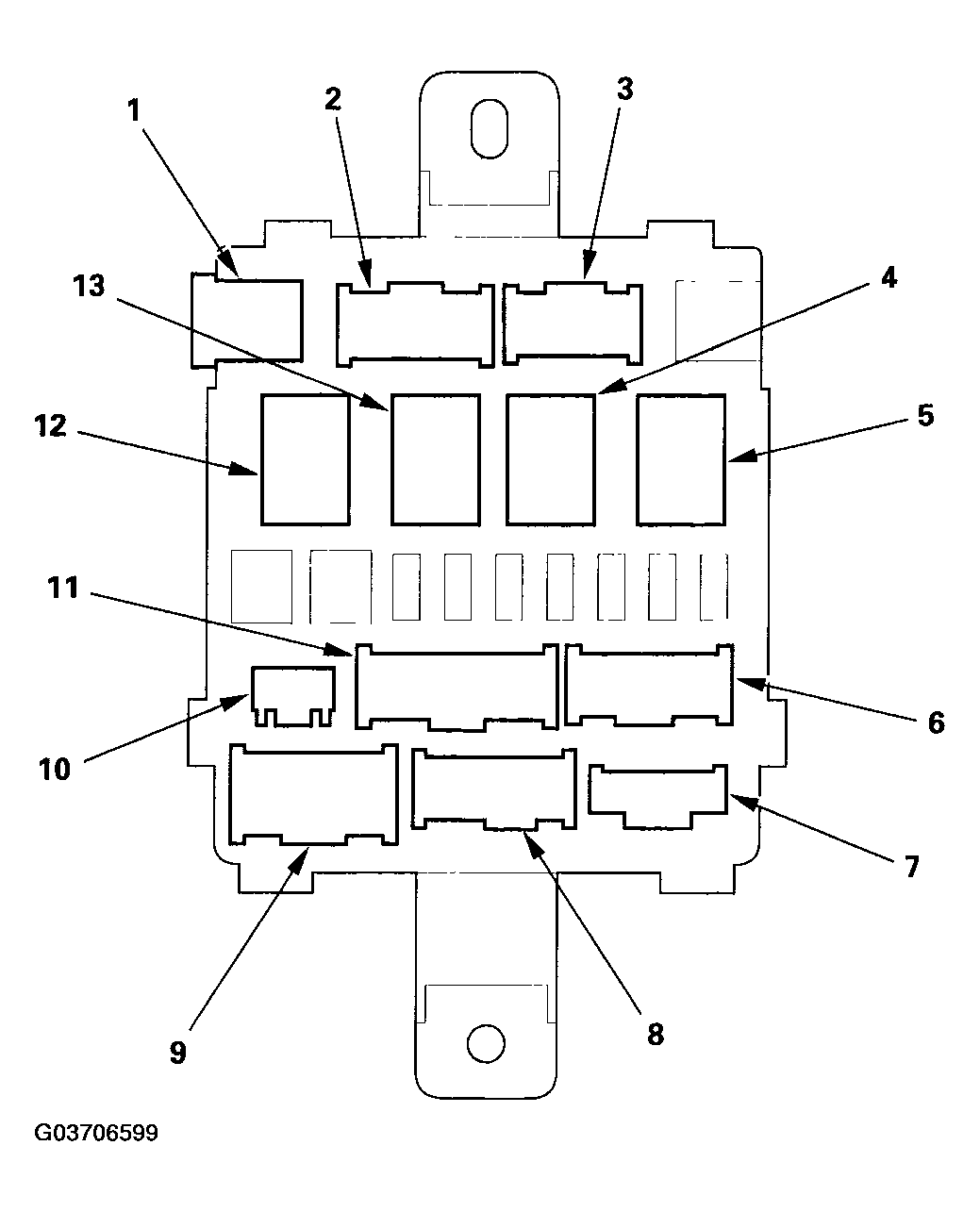

PASSENGER'S UNDER-DASH FUSE/Relay BOX
| SOCKET | REF | Terminal | CONNECTION TO |
|---|---|---|---|
| A | 1 | 1 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| B | 2 | 10 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (DASH BRANCH) ) |
| C | 9 | 5 | Floor wire harness (see FLOOR WIRE HARNESS (RIGHT FRONT BRANCH) ) |
| D | 6 | 17 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| E | 11 | 14 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| Engine mount control relay | 12 | 4 | |
| F | 7 | 8 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| G | 8 | 14 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| H | 10 | 3 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| J | 3 | 13 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (DASH BRANCH) ) |
| Passenger's accessory power socket relay | 5 | 4 | |
| Seat heater relay | 4 | 4 | |
| ETCS control | 13 | 4 |
