Automatic Lighting Sensor/Sunlight Sensor (EX-L Touring Model) Connector End View
Automatic Lighting Sensor/Sunlight Sensor (EX-L Touring Model) Connector End View

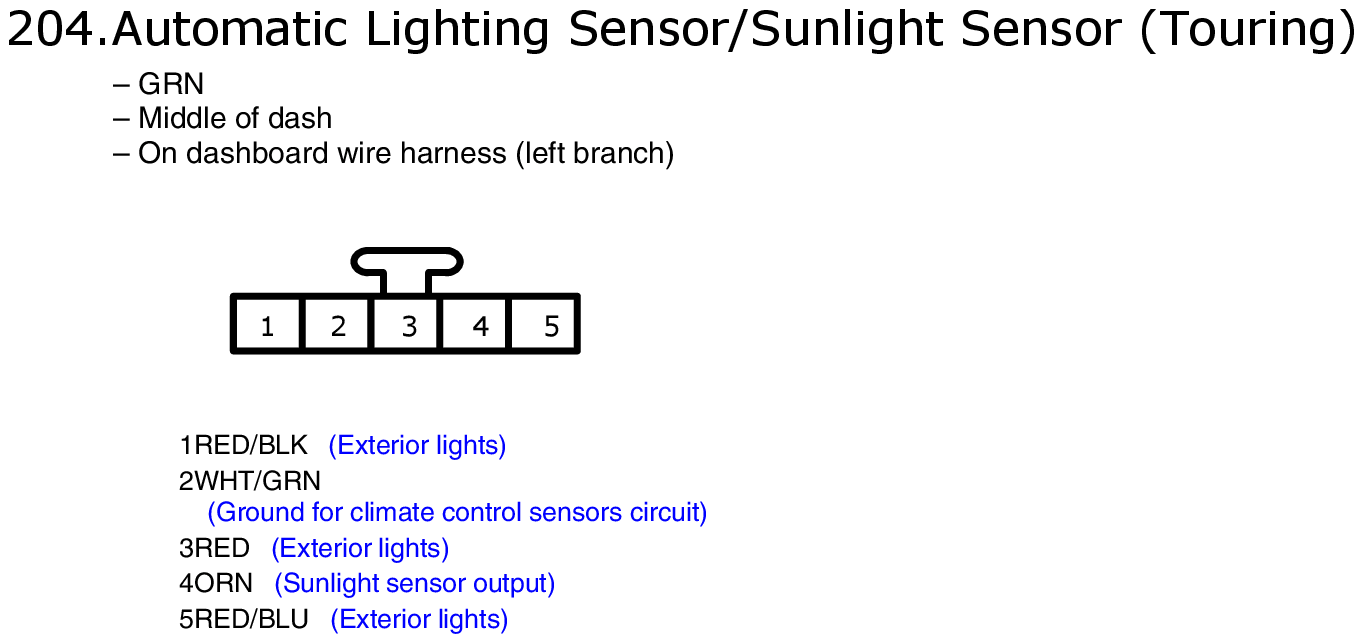

Fig 1: Automatic Lighting Sensor/Sunlight Sensor (EX-L Touring Model) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
