MICU-Rear Junction Box Connector End View

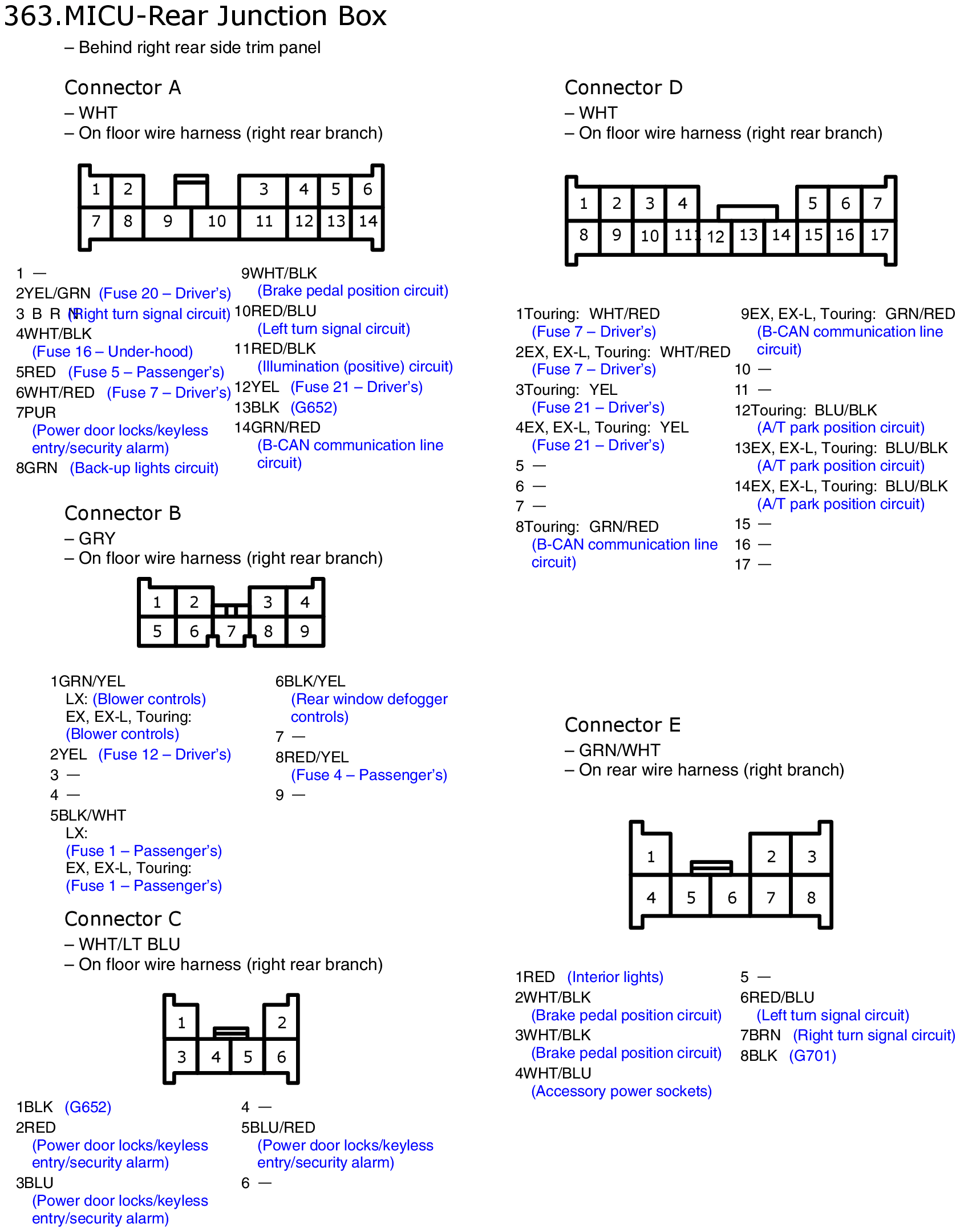

Fig 1: MICU-Rear Junction Box Connector End View (1 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

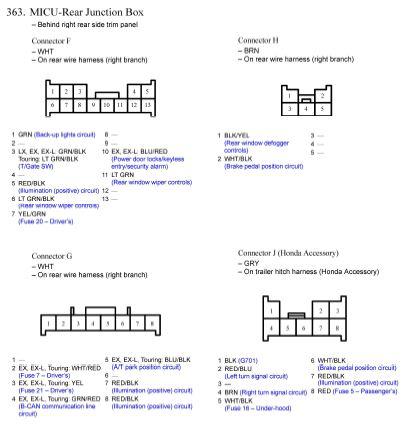

Fig 2: MICU-Rear Junction Box Connector End View (2 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
