Driver's Under-dash Fuse/Relay Box

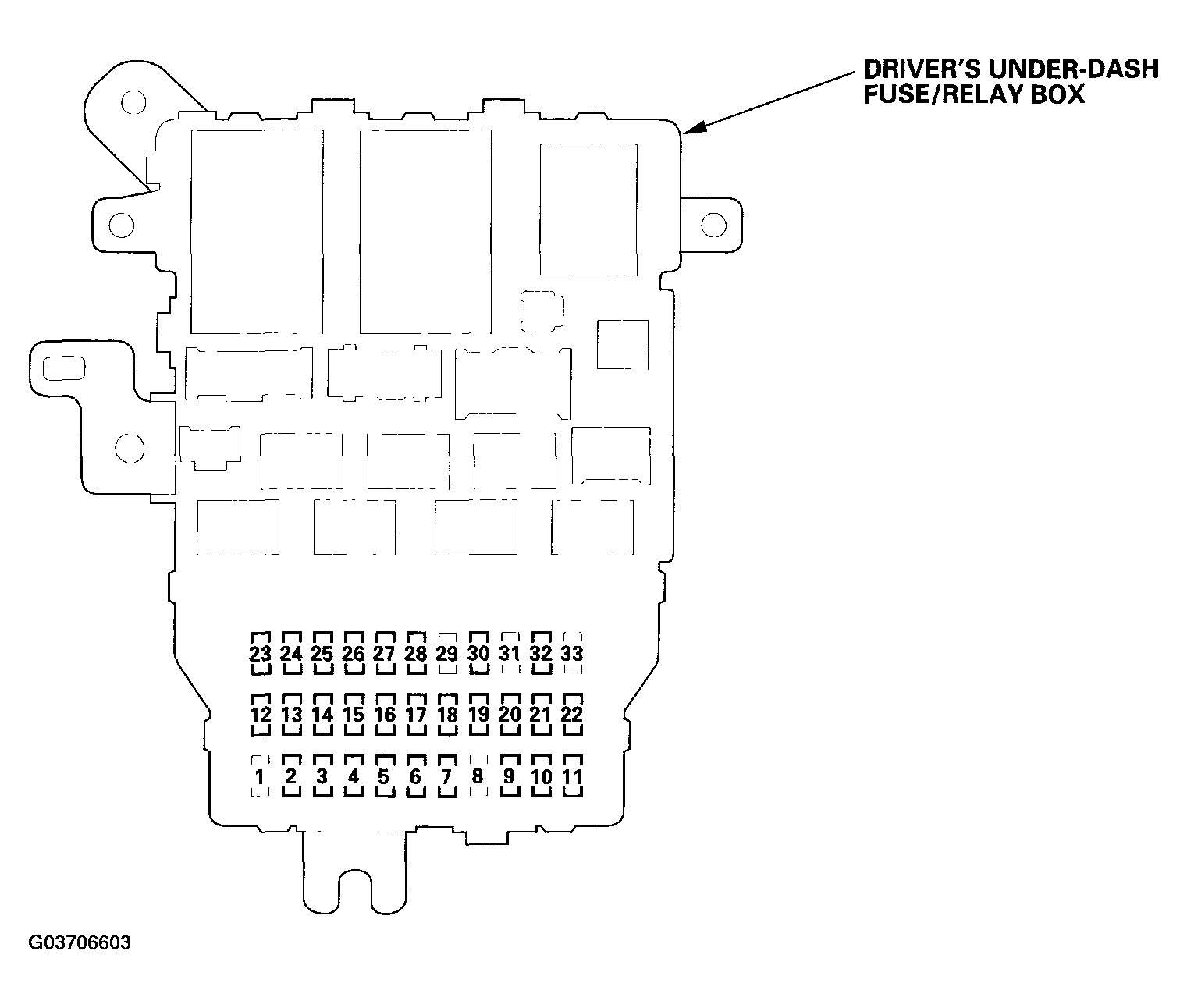

DRIVER'S UNDER-DASH FUSE/RELAY BOX (1 OF 2)
| Fuse Number | Amps | Wire Color | Component(s) or Circuit(s) Protected |
|---|---|---|---|
| 1 | - | - | Not used |
| 2 | 15 A | RED/YEL | PCM (main relay) |
| BLK/WHT | Ignition coils | ||
| 3 | 10 A | RED/WHT | Daytime running lights relay (Canada) |
| Fuse/relay box socket | Multiplex integrated control unit (MICU) | ||
| 4 | 15 A | WHT/BLK | A/F sensor 1, A/F sensor 2, Secondary HO2S 1, Secondary HO2S 2 |
| 5 | 10 A | WHT/GRN | Audio unit, XM receiver, Navigation unit (with navigation), DVD player unit (with rear entertainment system) |
| 6 | 7.5 A | WHT/BLU | Ambient light, Cargo area light, Driver's door courtesy light, Front passenger's door courtesy light, Driver's vanity mirror light, Front passenger's vanity mirror light, Front individual map light, Left rear individual map light, Right rear individual map light. Power tailgate inner switch light |
| 7 | 7.5 A | WHT/RED | Combination switch control unit, Door multiplex control units, Gauge control module, Immobilizer control unit-receiver, Navigation display unit (with navigation), Navigation unit (with navigation), Left power sliding door control unit, Right power sliding door control unit, Power tailgate control unit, Power seat control unit, MICU-rear junction box |
| Fuse/relay box socket | Multiplex integrated control unit (MICU) | ||
| 8 | - | - | Not used |
| 9 | 10 A | WHT/RED | Driver's accessory power socket |
| 10 | 7.5 A | WHT | SRS unit, Passenger's weight sensor unit, OPDS unit |
| 11 | 30 A | GRN | Windshield wiper motor |
| 12 | 15 A | YEL | Rear accessory power socket relay, Cargo area light |
| 13 | 20 A | GRN | Left power sliding door control unit |
| 14 | 20 A | WHT/BLU | Power seat control unit |
| 15 | 20 A | ORN | Adjustable pedal relays |
| 16 | 20 A | WHT/RED | Power seat control unit |
| 17 | 20 A | WHT | Power tailgate control unit |
| 18 | 15 A | BLK/RED | Alternator, Brake pedal position switch, ELD unit, EVAP canister purge valve, VSA modulator-control unit, PCM (VBSOL), PCM (IG1 ACC) |
| 19 | 15 A | BLK/YEL | Immobilizer control unit-receiver, PCM (IG1) |
| YEL/GRN | Fuel pump | ||
| 20 | 10 A | YEL/GRN | Washer motor. Rear window wiper motor relay. Rear window wiper motor |
DRIVER'S UNDER-DASH FUSE/RELAY BOX (2 OF 2)
| Fuse Number | Amps | Wire Color | Component(s) or Circuit(s) Protected |
|---|---|---|---|
| 21 | 7.5 A | YEL | A/T shift lock solenoid, Automatic lighting control unit, Combination switch control unit, Parking and back-up sensor control unit, Gauge control module, Engine mount control unit, Power mirror switch, Relay control module, MICU-rear junction box, Power seat control unit, Left power sliding door control unit, Right power sliding door control unit, Power tailgate control unit, TPMS control unit |
| Fuse/relay box socket | Multiplex integrated control unit (MICU) | ||
| 22 | 10 A | WHT/RED | SRS unit |
| 23 | 7.5 A | YEL/RED | Radiator fan diode, PCM (LAF R) |
| 24 | 20 A | YEL/RED | Left rear window switch |
| 25 | 20 A | YEL/BLU | Right rear window switch |
| 26 | 20 A | GRN/BLK | Front passenger's window switch |
| 27 | 20 A | GRN/WHT | Door multiplex control unit |
| 28 | 20 A | GRN | Moonroof open/close relay |
| 29 | - | - | Not used |
| 30 | 10 A | BLK/YEL | AC inverter unit, Automatic lighting control unit, Adjustable pedal motor, Climate control unit (with climate control), No. 2 fuse (in the under-hood fuse/relay box). Blower motor relay, PCM (FAN L), PCM (ACC L), Rear climate control unit (with climate control), Power mirror actuators, Seat heater relay (in the passenger's under-dash fuse/relay box), Front A/C control panel, Rear A/C control panel, Recirculation control motor |
| Fuse/relay box socket | Optional connector | ||
| 31 | - | - | Not used |
| 32 | 10 A | YEL/RED | Active noise control unit (with active noise control), Audio unit, Audio amplifier (with premium sound system), Auxiliary jack assembly (with rear entertainment system), Driver's accessory power socket, DVD player unit (with rear entertainment system), Ignition key switch, Navigation unit (with navigation), Navigation display unit (with navigation), Passenger's accessory power socket relay (in the passenger's under-dash fuse/relay box) |
| Fuse/relay box socket | Optional connector, Multiplex integrated control unit (MICU), Driver's accessory power socket relay | ||
| 33 | - | - | Not used |
