DTC P0741: Torque Converter Clutch Circuit Stuck OFF: Notes

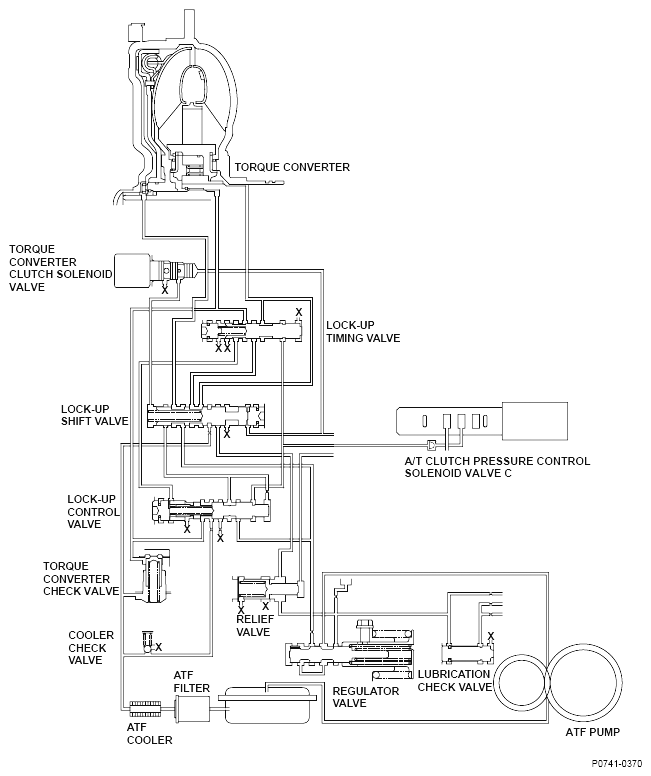

Fig 1: Torque Converter Clutch System Diagram

Fig 2: Vehicle Speed Graph

MONITOR DESCRIPTION CHART

Torque converter clutch operation		A/T clutch pressure control solenoid valve C
		ON (100 %)	OFF (0 %)
Torque converter clutch solenoid valve	ON (12 V)	Torque converter clutch: maximum duty	Torque converter clutch OFF
	OFF (0 V)	Torque converter clutch OFF	Torque converter clutch OFF
