VSA Sensor Cluster Connector End View
VSA Sensor Cluster Connector End View

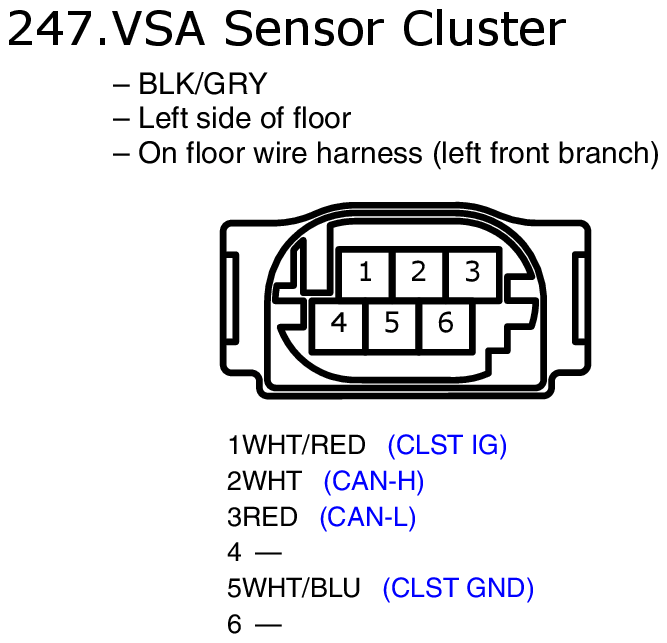

Fig 1: VSA Sensor Cluster Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
