Left Taillight Assembly Connector End View
Left Taillight Assembly Connector End View

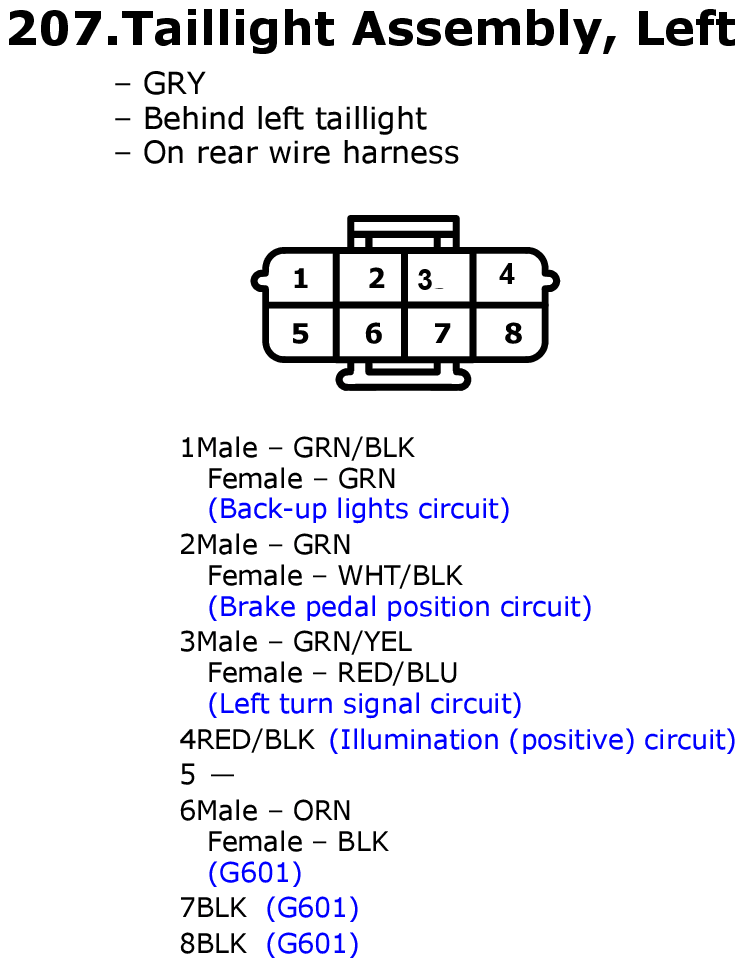

Fig 1: Left Taillight Assembly Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
