Honda
›
2006
›
Ridgeline RTS
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Power Windows
›
Circuit Diagram
›
Back Power Window
Back Power Window

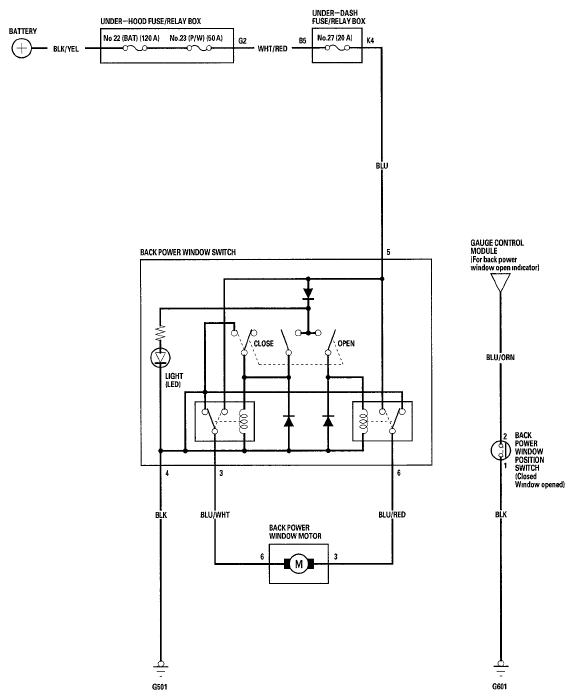

Fig 1: Back Power Window Circuit Diagram (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

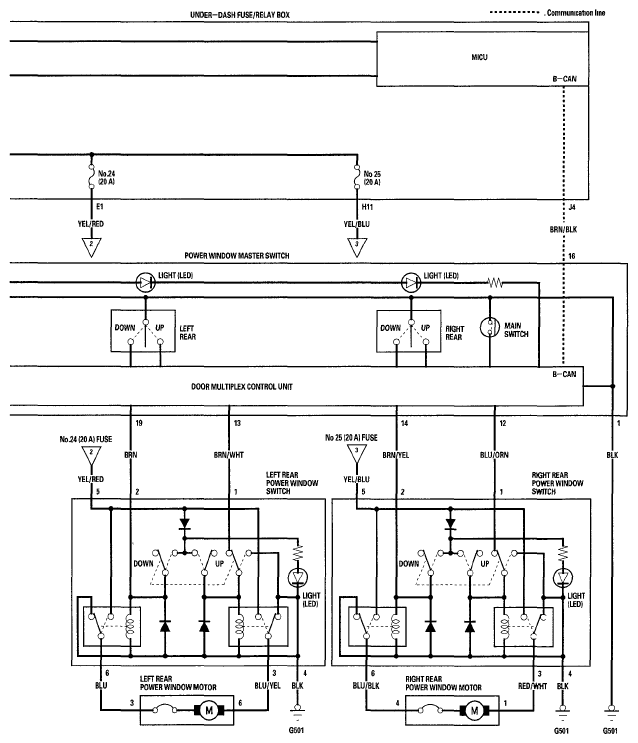

Fig 2: Back Power Window Circuit Diagram (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

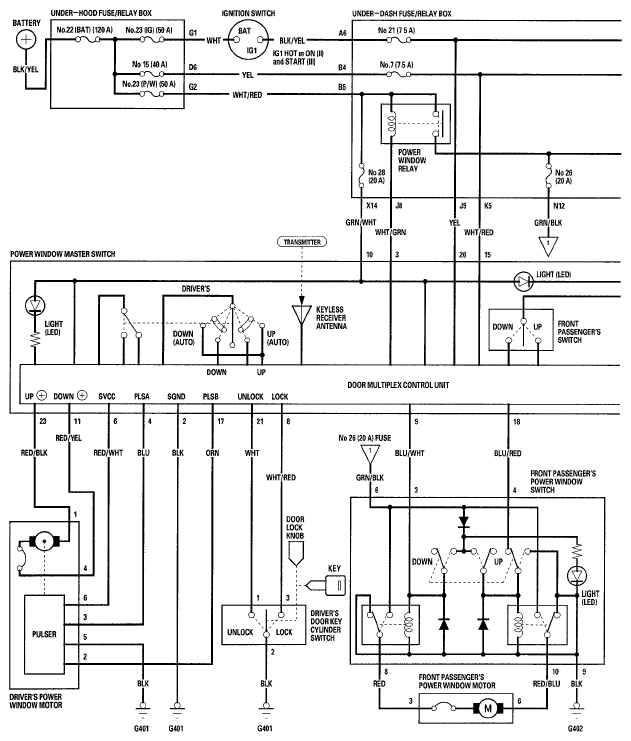

Fig 3: Back Power Window Circuit Diagram (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
