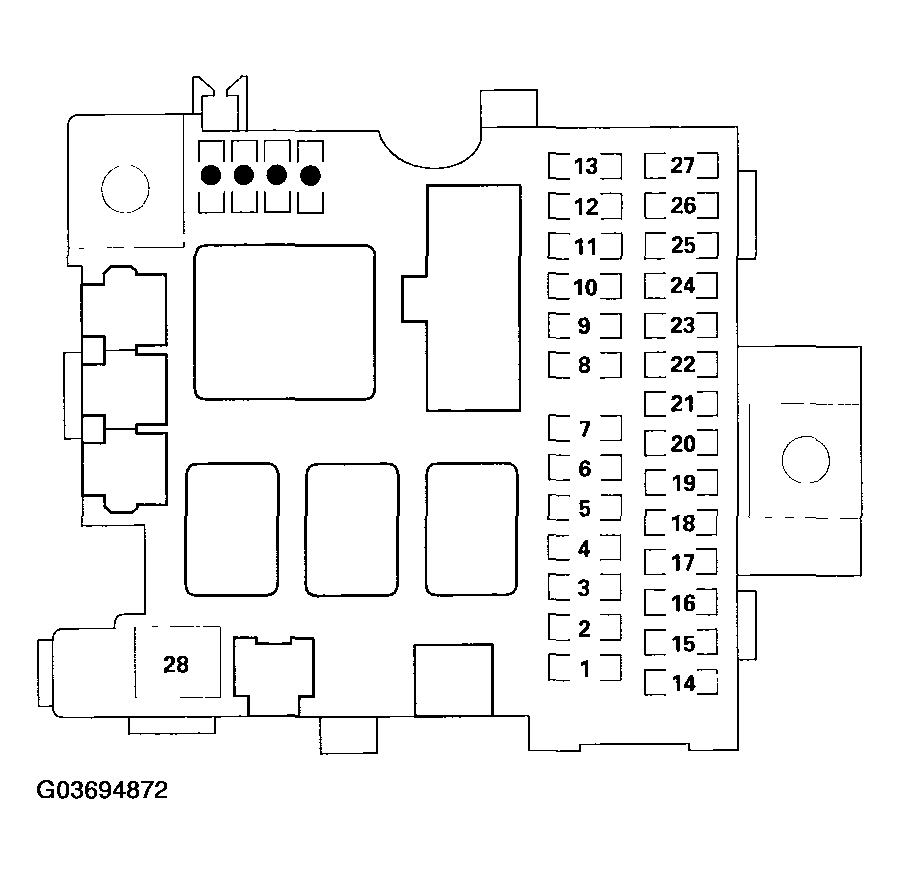

| 1 |
10A |
GRN or PNK |
SRS unit (VB) |
| 2 |
15A |
GRN or BLK/YEL |
SRS unit (VA) |
| BLK/YEL |
Fuel pump, Immobilizer control unit-receiver ('06-09 model), PGM-FI main relay ('00-05 models) |
| 3 |
7.5 A |
BLK/WHT |
Engine start switch |
| 4 |
15A |
BLK/YEL |
Ignition coils ('00-05 models) |
| 5 |
7.5 A |
YEL |
Back-up lights, Charging system light ('04-05 models), DRL indicator, EPS control unit, Gauge assembly, Keyless door lock control unit, Convertible top control unit |
| 6 |
15A |
BLK/YEL |
Air control solenoid valve. Alternator, Charging system indicator ('00-03 models), Cruise control unit, Cruise control main switch, ELD unit, EVAP bypass solenoid valve, EVAP canister vent shut valve, EVAP canister purge valve, Primary and secondary heated oxygen sensors, Rear window defogger change relay ('02-05 models) |
| 7 |
7.5A |
RED/BLU |
Turn signal/hazard relay |
| 8 |
20A |
GRN/BLK |
Power window master switch. Windshield wiper motor. Intermittent wiper relay |
| 9 |
10A |
YEL/RED |
Accessory power socket, Audio unit. Radio remote switch. Convertible top switch light |
| 10 |
7.5 A |
YEL/BLU |
A/F sensor relay (LAF) ('06-09 model) |
| 11 |
7.5 A |
YEL/GRN |
ETCS control relay ('06-09 model) |
| 12 |
15A |
BLK/WHT |
Windshield washer motor, Convertible top switch |
| 13 |
7.5 A |
BLU/ORN |
Intermittent wiper driving circuit (in the gauge assembly) |
| 14 |
15A |
BLU/WHT |
Throttle actuator control module ('06-09 model) |
| 15 |
20 A |
WHT/RED |
A/F sensor (sensor 1) ('06-09 model), EVAP canister vent shut valve ('06-09 model) |
| 16 |
15A |
BLK/YEL |
Ignition coils ('06-09 model), Ignition coil relay ('06-09 model) |
| 17 |
20 A |
GRN/WHT |
Driver's window motor |
| 18 |
20 A |
BLU/BLK |
Passenger's window motor, Convertible top control unit |
| 19 |
7.5 A |
YEL/BLK |
ABS modulator-control unit ('00-05 models), Daytime running lights control unit (Canada), Power mirror actuator, Rear window defogger relay |
| 20 |
7.5 A |
BLK/YEL |
A/C compressor clutch relay, Blower motor relay, A/C condenser fan relay, Heater control panel. Radiator fan relay, Recirculation control motor |
| 21 |
7.5 A |
BLU/ORN |
ECM, PGM-FI main relay ('00-05 models) |
| 22 |
15A |
WHT/BLU |
Audio unit |
| 23 |
10A |
WHT/GRN |
Audio unit light. Cruise control main switch light, Front parking lights. Gauge lights, Hazard warning switch light, Heater control panel lights. Keyless door lock control unit. License plate light, Option connector, Convertible top switch lights, Radio remote switch lights. Rear side marker lights, Taillights, Rear window defogger switch light. Passenger's airbag cutoff indicator illumination light ('06-09 model), VSA off switch light |
| 24 |
7.5 A |
WHT/BLU |
Ceiling/spotlights, Trunk light |
| 25 |
7.5 A |
WHT/RED |
ECM, Gauge assembly, Heater control panel, Immobilizer indicator light, Convertible top control unit, Immobilizer control unit-receiver ('06-09 model) |
| 26 |
15A |
WHT |
Keyless door lock control unit. Trunk lid opener solenoid |
| 27 |
10A |
RED/BLU |
Daytime running lights control unit |
| 28 |
- |
- |
Not used |
