Connecting Rod Journal Code Location

The connecting rod journal codes are stamped on the No. 1 web.

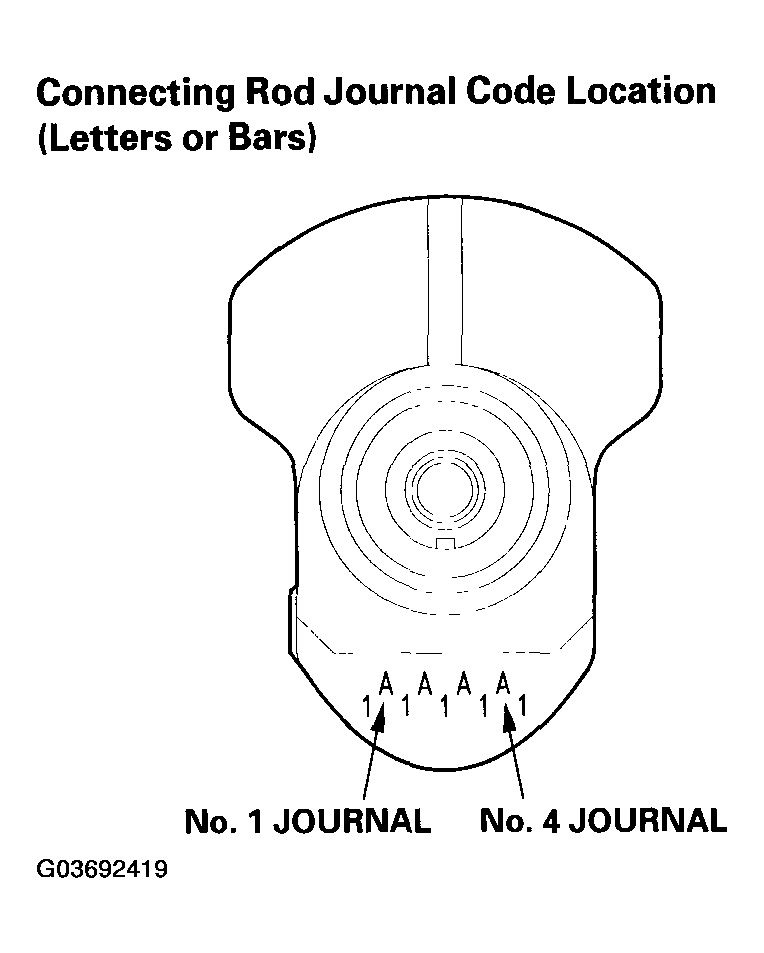

Fig 1: Identifying Connecting Rod Journal Codes
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Use the big end bore codes and rod journal codes to select appropriate replacement bearings from the following table.
NOTE: Color code is on the edge of the bearing.

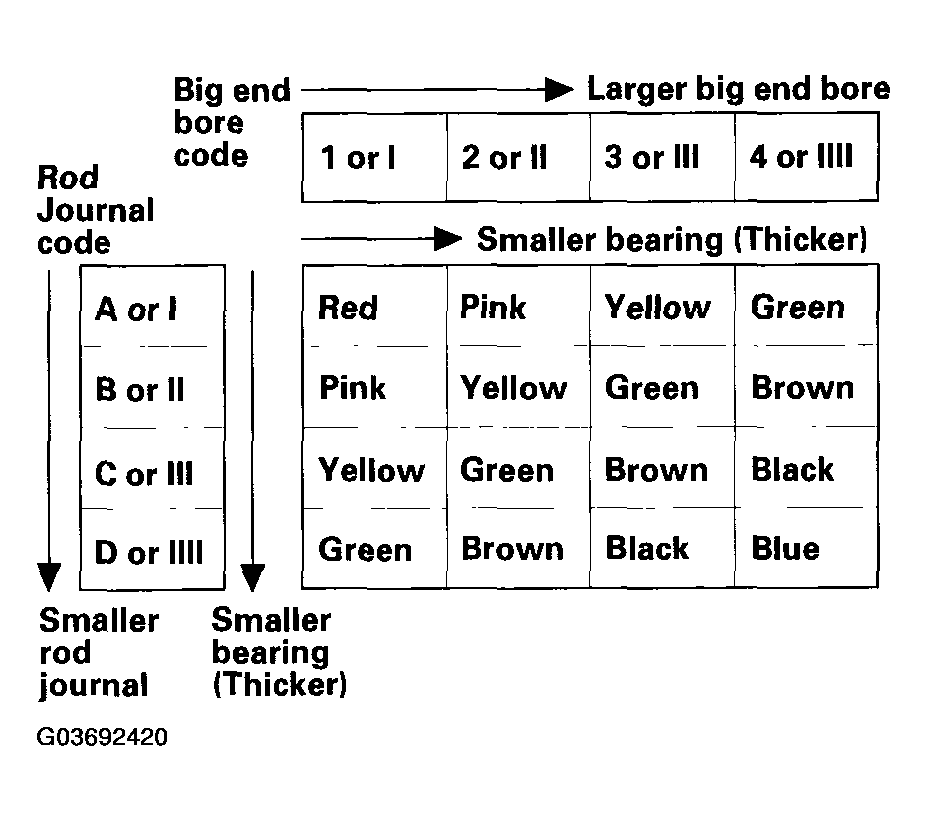

Fig 2: Bearing Color Codes Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
