With the HDS
- Make sure you have the anti-theft code for the radio and the navigation system (if equipped), then write down the frequencies for the radio's preset buttons.
- Remove the fuel fill cap.
- Turn the ignition switch ON (II).
- From the INSPECTION MENU of the HDS, select Fuel Pump OFF, then start the engine, and let it idle until it stalls.
- Turn the ignition switch OFF.
NOTE:
- Do not allow the engine to idle above 1,000 RPM or the ECM will continue to operate the fuel pump.
- A DTC or a Temporary DTC may be set during this procedure. Check for DTCs, and clear them as needed (see
GENERAL TROUBLESHOOTING INFORMATION
).
- Turn the ignition switch OFF.
- Disconnect the negative cable from the battery.

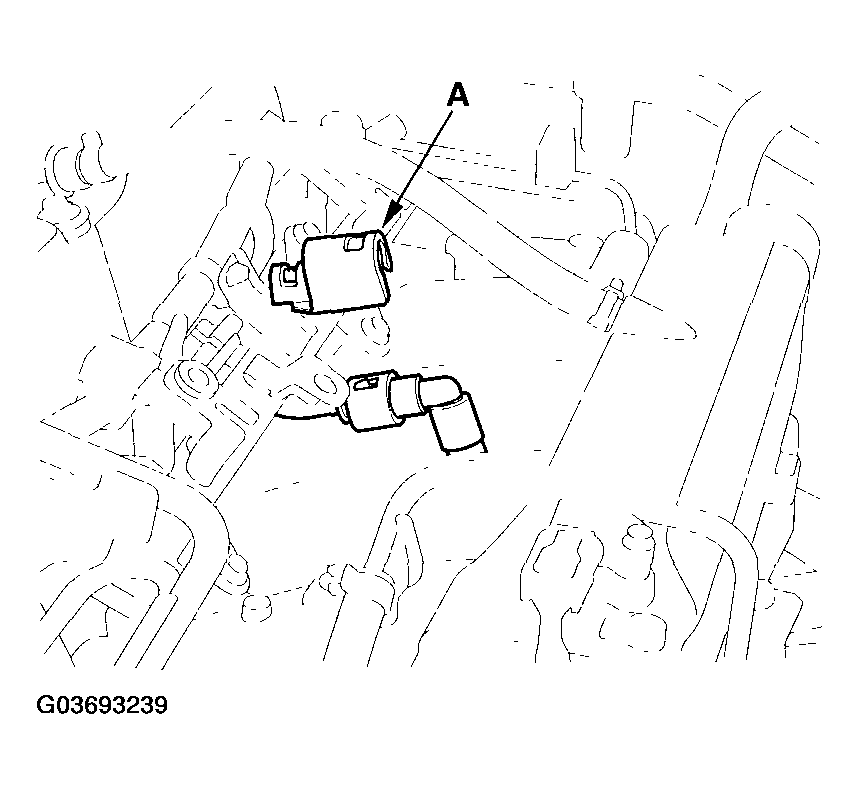

- Remove the injector cover and the quick-connect fitting cover (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Check the fuel quick-connect fitting for dirt, and clean it if needed.

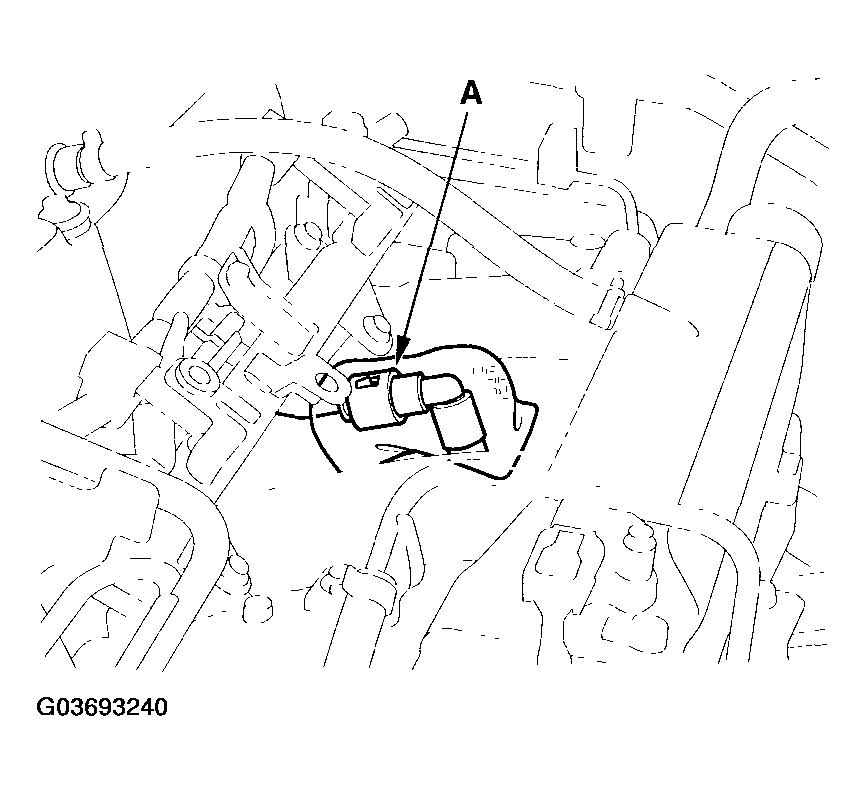

- Place a rag or shop towel over the quick-connect fitting (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Disconnect the quick-connect fitting (A): Hold the connector (B) with one hand, and squeeze the retainer tabs (C) with the other hand to release them from the locking tabs (D). Pull the connector off.
NOTE:
- Be careful not to damage the line (E) or other parts.
- Do not use tools.
- If the connector does not move, keep the retainer tabs pressed down, and alternately pull and push the connector until it comes off easily.
- Do not remove the retainer from the line; once removed, the retainer must be replaced with a new one.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- After disconnecting the quick-connect fitting, check it for dirt or damage (see step 4
).
- Reconnect the negative cable to the battery, and do these items:
- Enter the anti-theft code for the radio, then enter the customer's radio station presets.
- Reset the clock.
