Front Subframe Alignment
NOTE:

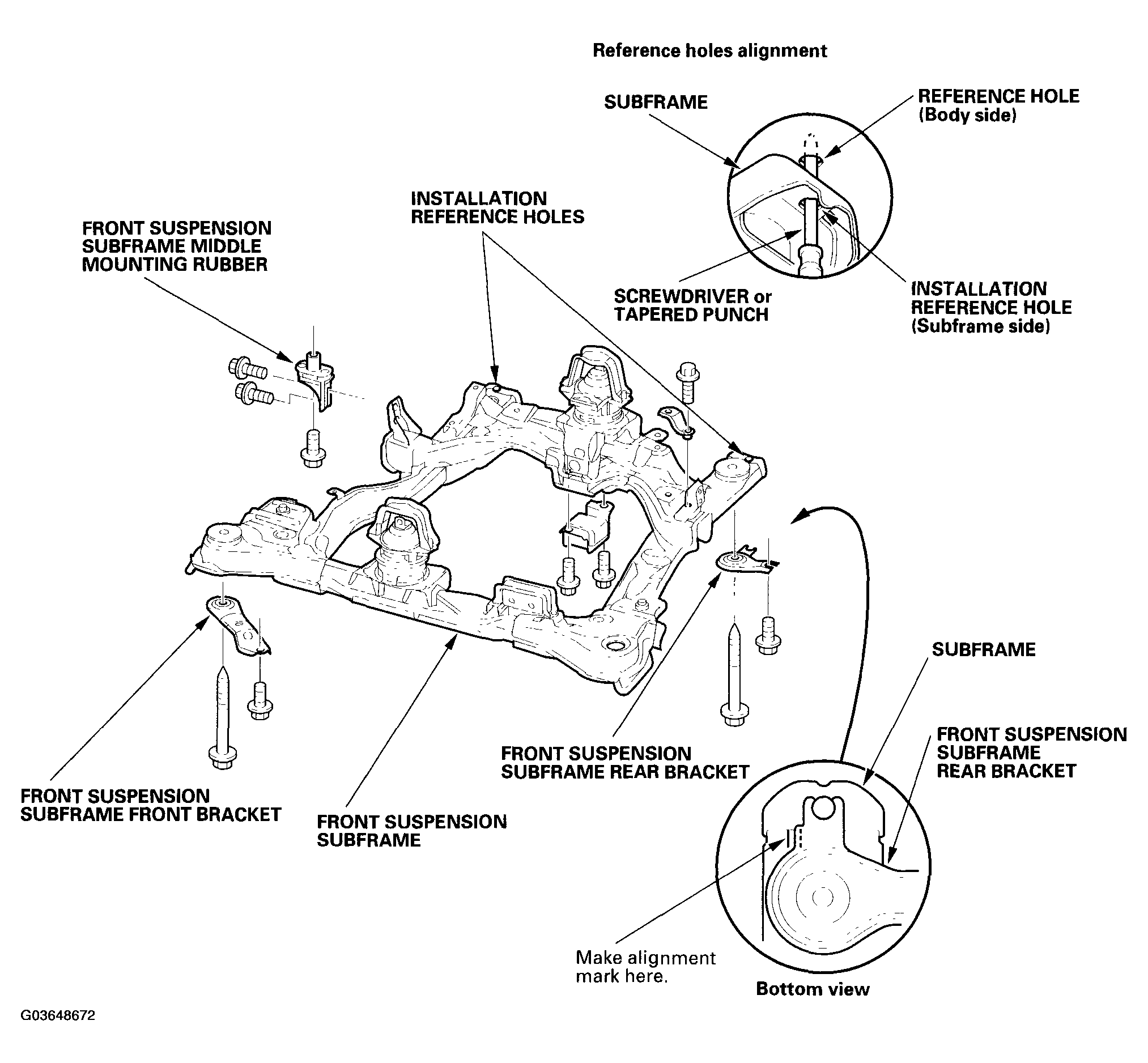

- Before removing the subframe, make an alignment mark for the front suspension subframe rear bracket as shown below.
- When installing, align both installation reference holes in the subframe with both reference holes in the body using a screwdriver or tapered punch as a guide.
- After mounting the subframe and brackets loosely, align the reference marks with the edge of the rear brackets then tighten all bolts.
