Component Location Index

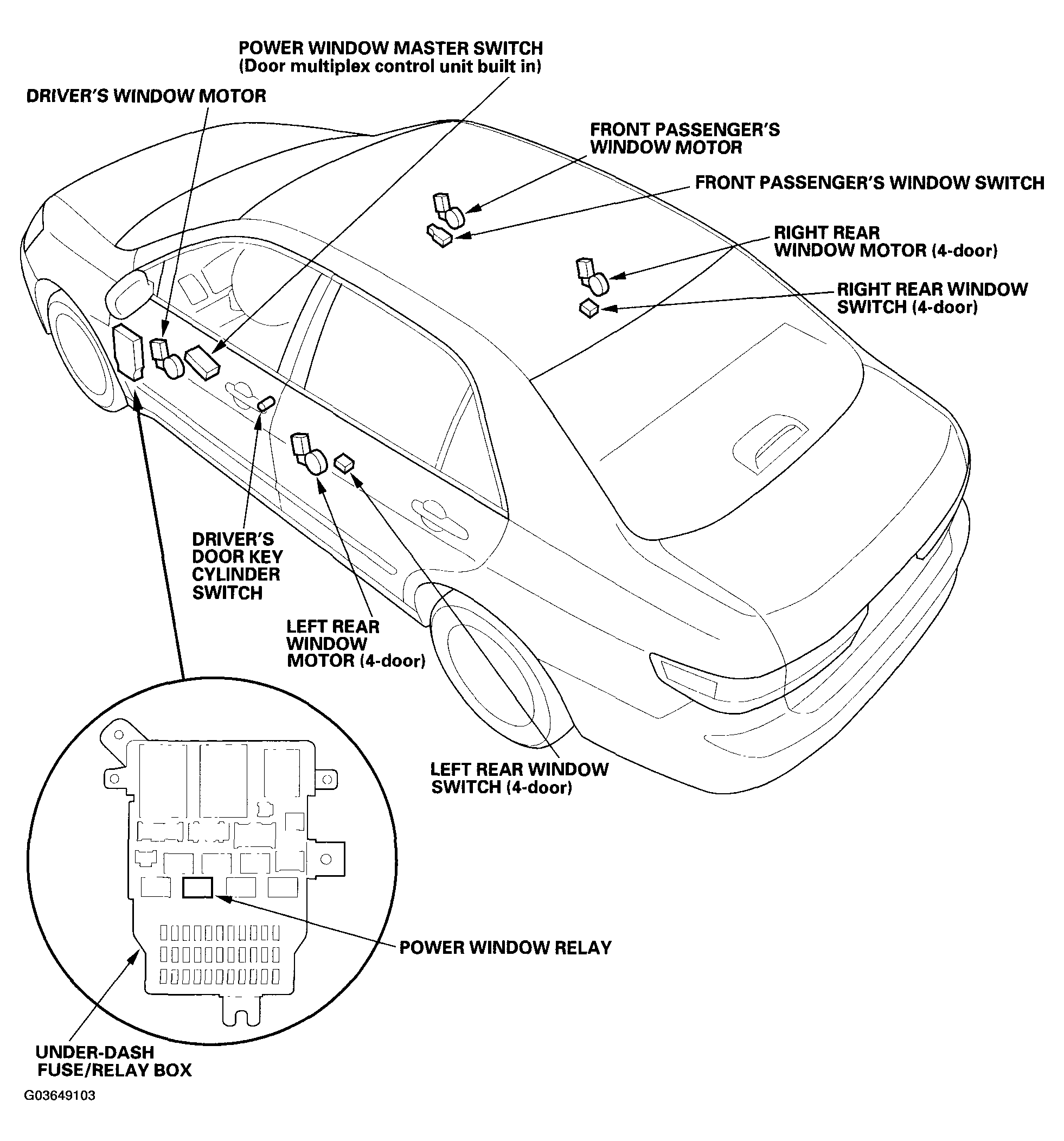

Fig 1: Locating Power Windows Components
G03649103Courtesy of AMERICAN HONDA MOTOR CO., INC.
