Master Switch Replacement

Carefully pry off the driver's door switch trim.
- 2-door (see 2-DOOR )
- 4-door (see 4-DOOR )
Disconnect the power mirror and power window switch connectors (A).

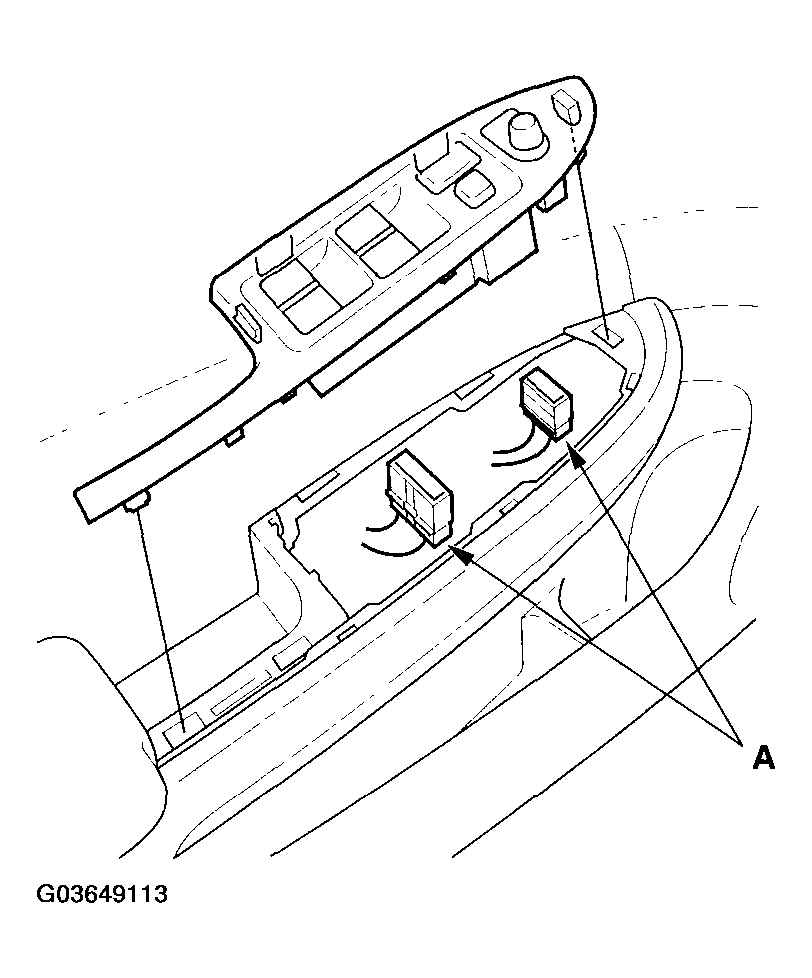

Fig 1: Disconnecting Power Mirror And Power Window Switch Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the four mounting screws, then remove the master switch (A) from the panel (B).

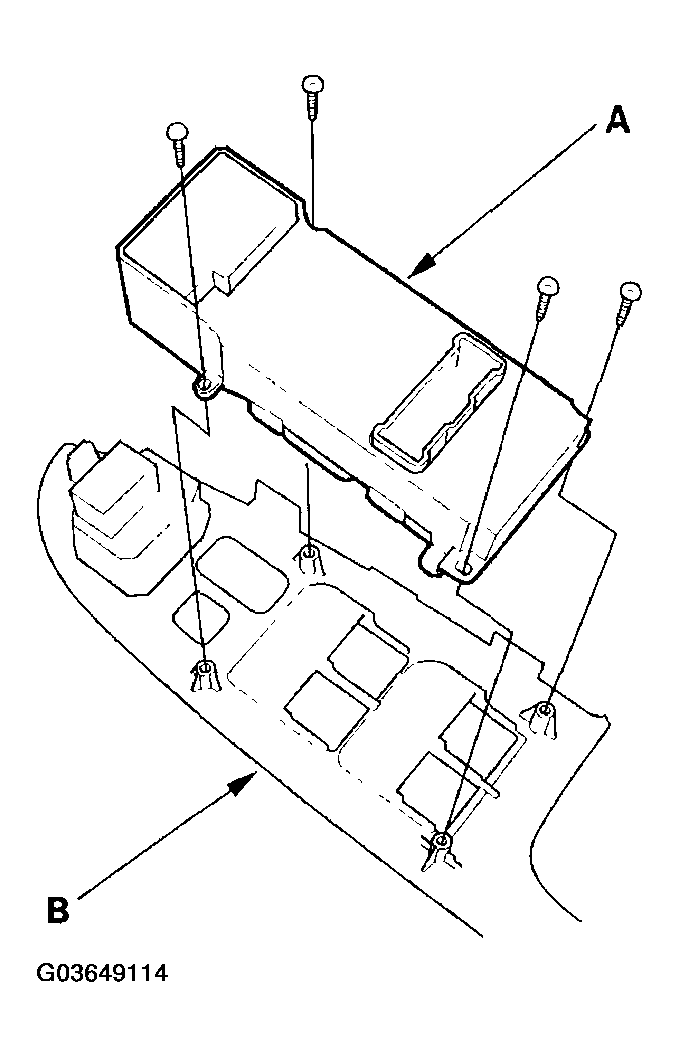

Fig 2: Removing Master Switch From Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reinstall the switch in reverse order of removal.
Reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT ).
Check for DTCs again using the HDS. ).
