Passenger's Window Switch Test/Replacement

Carefully pry off the door switch trim.
- 2-door (see 2-DOOR )
- 4-door (see 4-DOOR )
Disconnect the power window switch connector (A), then remove the three mounting screws and the power window switch (B) from the switch trim (C).

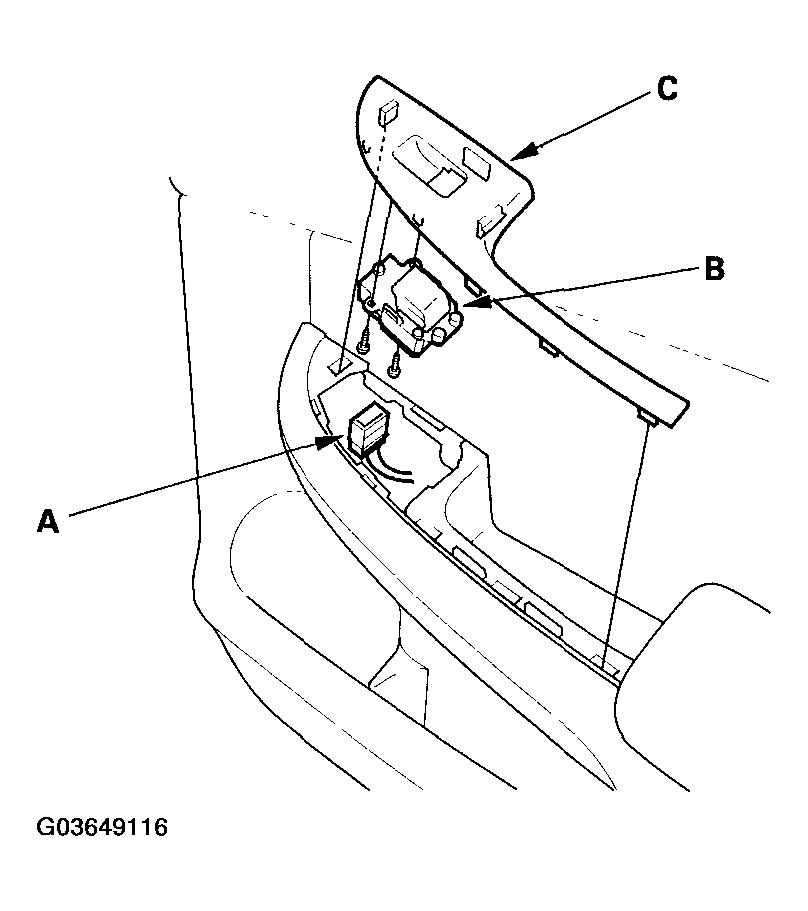

Fig 1: Disconnecting Power Window Switch Connector (Front Passenger's)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

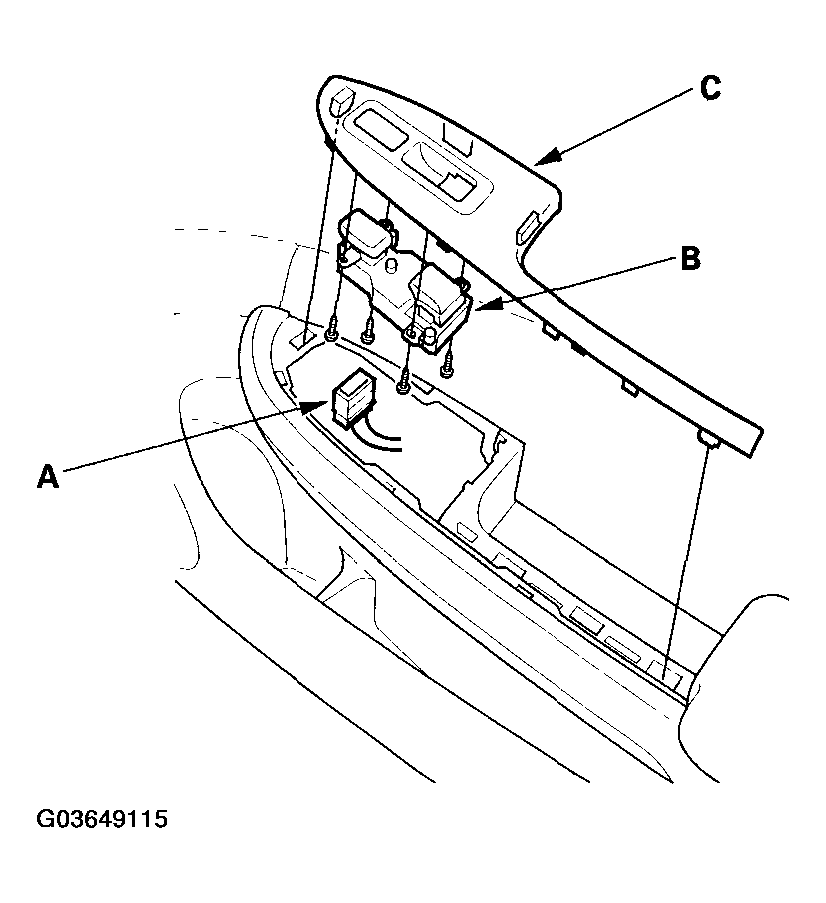

Fig 2: Disconnecting Power Window Switch Connector (Rear)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Swap the window switch with another known-good switch and test.
If the original window switch is faulty, replace it.
